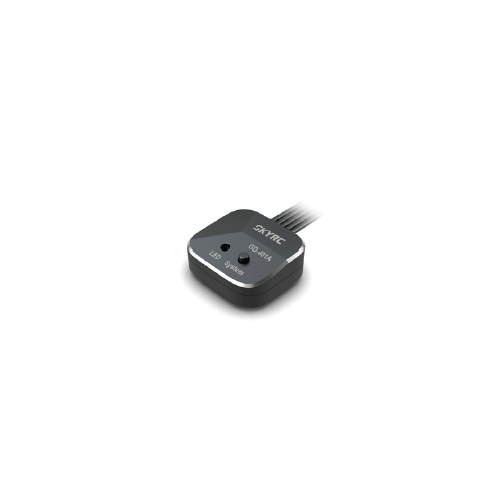

GD-401A Gyro for RC Drift Cars

Description:

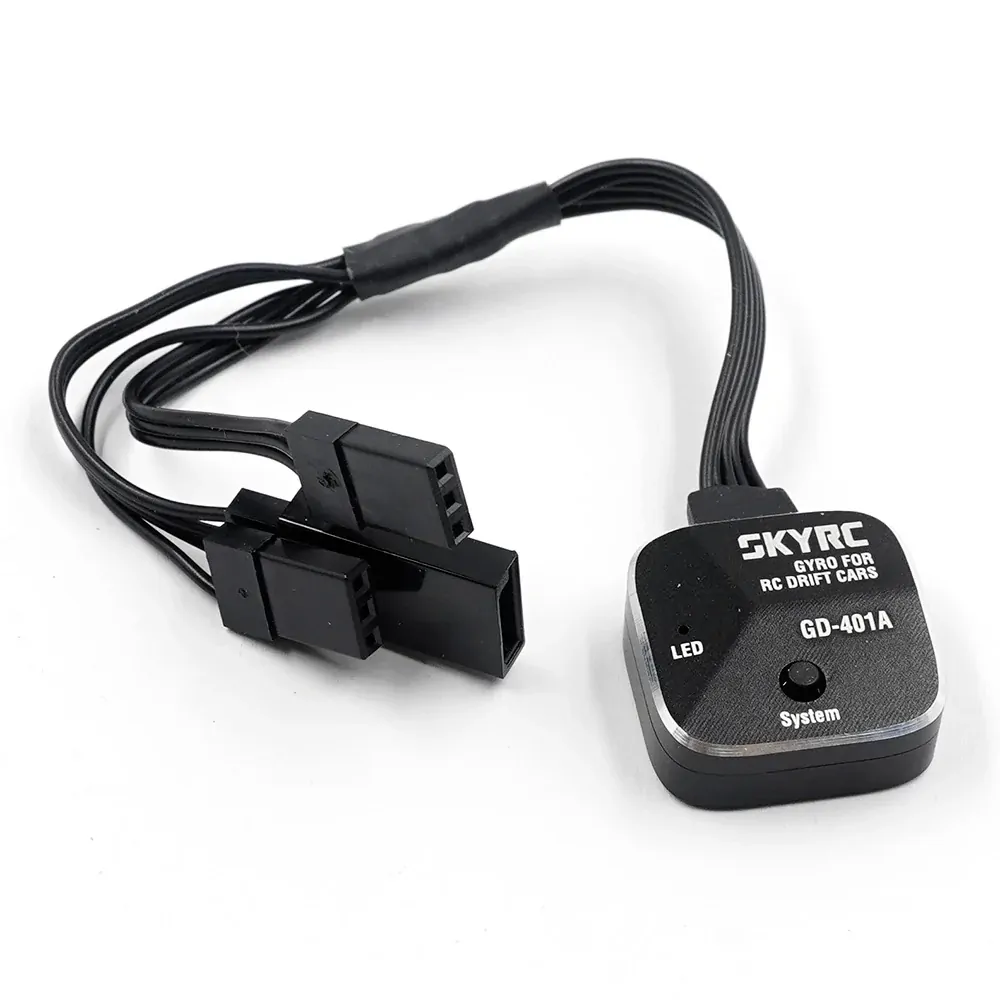

This is SkyRC GD-401A Drift Car Gyro. A 32-bit processor works seamlessly with the high-precision MEMS gyro to calculate and correct every deviation—delivering control that feels natural and fluid. Tuned for RWD drift cars with 9 preset curves, and compatible with touring, rally, and short course models.

From smooth to sharp, GD-401A’s 9 preset curves adapt to your driving style—beginner or pro. A single button cycles through modes (1–9). At startup, green LED flashes display the selected curve. Adapt to every track. Match every drift.

Different chassis, different layouts—sometimes your control logic ends up reversed. With one-touch reverse setup, the gyro adapts automatically to your installation. No second-guessing directions—just focus on nailing every corner with precision.

So compact, it virtually disappears into your chassis—lightweight, seamless, and never in the way during assembly or wiring. CNC-machined aluminum provides rigidity and efficient cooling, all wrapped in a premium finish that feels as refined as it looks.

Feature:

• CNC aluminum. Tough, elegant, heat-efficient.
• Optimized sensitivity and gain algorithms ensure accurate, responsive control
• Adjustable servo travel with 180° endpoint setting
• Integrated cable. One-button setup. Easy install.
• 9 curves for various drift scenarios
• One-touch reverse setup with 5-second steering direction correction
• Dial In Your Endpoints
• Different Mount, Same Control
• Discreet. Durable. Designed to Fit.

Specification:

• Dimension: 22 X 21 X 9mm
• Weight: Approx. 12g
• Case Material: 6063 Aluminum
• Input Signal: PWM (50–333Hz)
• Operating Voltage: 4.8V–7.4V
• Output Signal to Servo: 1520μs (50–333Hz)
• Operating Current: 20mA @ 6V
• Operating temperature: -10℃-40℃
• Working humidity: 10%–90% RH, non-condensing
• Storage temperature: -10°C–45°C
• Storage humidity: 20%–65% RH, non-condensing

Include:

• SkyRC GD-401A Drift Car Gyro (1 pc)
