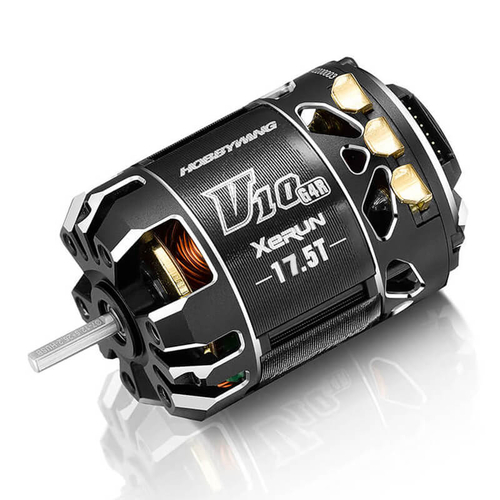

HOBBYWING XERUN V10 17.5T G4R BLACK MOTOR



Features

  • Excellent performance, specially designed for 1/10 or 1/12 STOCK racing.
  • Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC.
  • The innovative outer diameter structure of a fully exposed stator core maximizes the heat dissipation area, the rear end of the motor is designed in a way to further improve heat dissipation.
  • Dual sensor interface is designed to meet various wiring/layout requirements.
  • The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
  • The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
  • The use of high-performance stator core, 220°C high-temperature-resistant enamelled wire, high precision high strength bearings and copper solder tabs with super current endurance guarantees outstanding performance and super durability.

Specifications

Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
KV Rating: 3150KV
LiPo Cells: 1-2S LIPO
No-load Current(A): 4.6A
Max Power Output(W): 213W
Current at Max Output(A): 49.4A
O.D.(mm): 35.8
Length (mm): 51.3
Shaft Diameter (mm): 3.175
Weight (g): 158g
Front Bearing: D9 x D4 x T4
Rear Bearing: D8 x D3 x T4
ESC: XeRun XR10 G2S
Vehicles: 1/12 - 1/10 Stock

(HW30401748)

SKU HW30401748
Barcode # 6938994429153
Brand HOBBYWING
