Description
Specifications

Product Name

QUICRUN 10BL60 SENSORED G2

Product Number

30108001

Type

Scale	1/10^th
Brushed/Brushless	Brushless
Sensored/Sensorless	Sensored
Waterproof	NO

Specifications

Cont./Peak Current	60A/200A
Input Voltage	2S Lipo
BEC BEC Output	Switch Mode 6V/7.4V @4A

Wires & Connectors

Input Wires	Black--14AWG-175mm1 Red--14AWG-175mm1
Output Wires	Blue-14AWG-175mm1、Yellow-14AWG-175mm1、Orange-14AWG-175mm*1
Input Connectors	No
Output Connectors	No

ESC Programing via

SET Button on ESC	Supported
LED Program Box	Supported
LCD G2 Program Box	Supported
LCD PRO	Supported
OTA Programmer	Not Supported
Program Port	Shared with fan port

Data Recording

Extreme value	Not Supported
Real-time Data	Not Supported
Historical data (Graph)	Not Supported

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size	35.03130.8mm
Weight	66.5g (Included wires&connectors)

Applications

Motors	Sensored/Sensorless Brushless motor
Vehicles	1/10^th Touring, Buggy, Drift,1/12^th and 1/14^th Vehicles
KV Rating/T Count	QUICRUN 3650 SD G2

- Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or troubleshooting.
- Powerful built-in BEC
  - Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V.
  - It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.
- Support Boost/Turbo timing technology
  - With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.
- High reliability and durability
  - Continuous current 60A, Peak Current 200A. A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.
- Support multiple programming methods
  - The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.
- Support Motor Rotation Adjustment
  - This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.
Specifications:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: NO
Relevant Parameters:
- Cont./Peak Current: 60A/200A
- Input Voltage: 2S Lipo
- BEC BEC Output: Switch Mode 6V/7.4V @4A
Wires & Connectors:
- Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
- Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1
- Input Connectors: No
- Output Connectors: No
ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD G2 Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Not Supported
- Program Port: Shared with Fan port
Data Recording:
- Extreme value: Not Supported
- Real-time Data: Not Supported
- Historical data (Graph): Not Supported
- Firmware Upgrade: Not Supported
Size & Weight:
- Size: 35.0*31*30.8mm
- Weight: 66.5g (Included wires & connectors)
Applications:
- Motors: Sensored/Sensorless Brushless motor
- Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles
- KV Rating/T Count: QUICRUN 3650 SD G2
Package total weight: 130.00 grams (incl. packaging)
Package size: 9.00 x 12.50 x 7.00cm

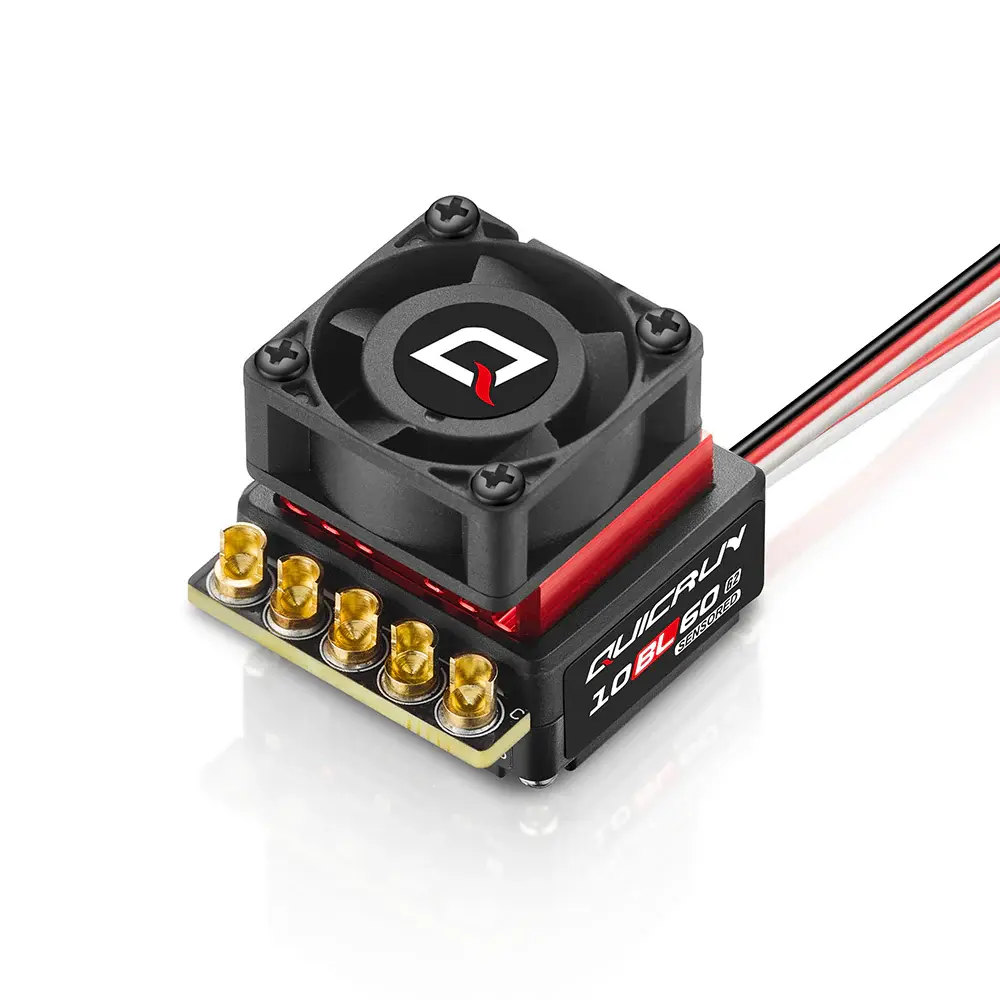

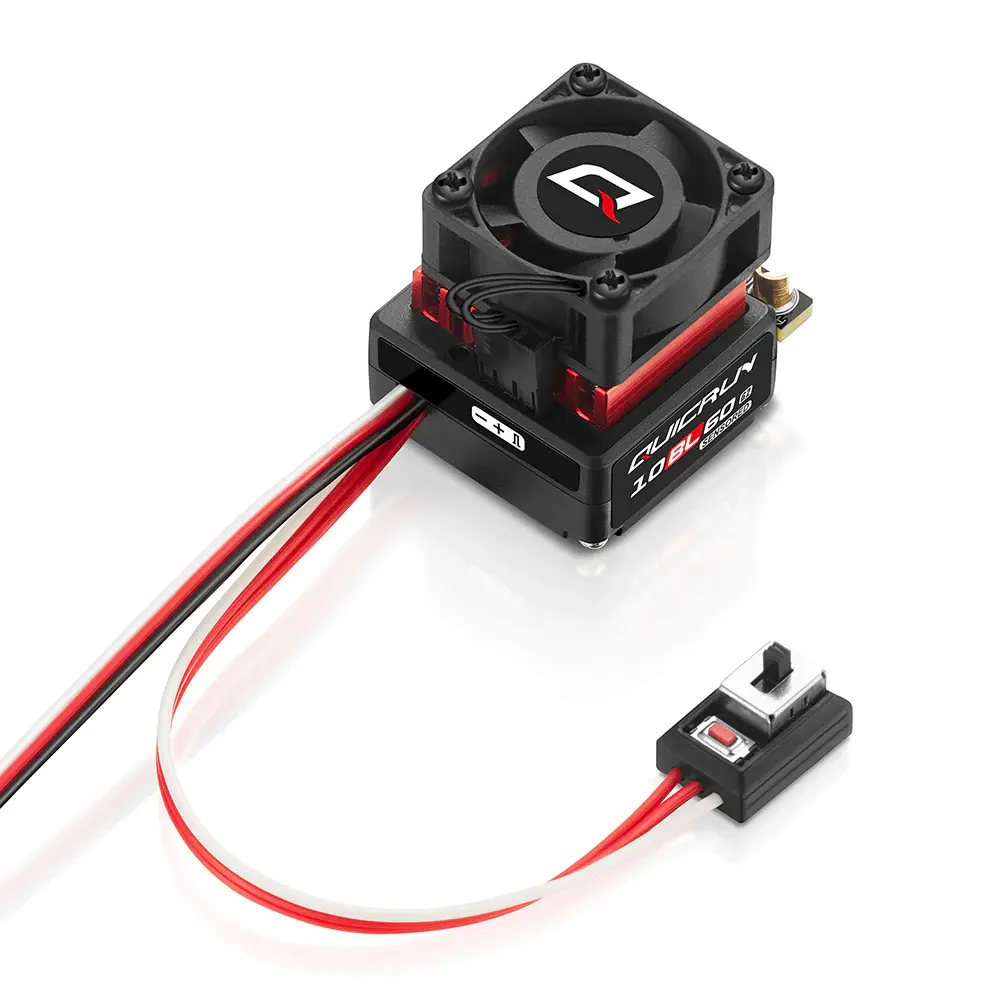

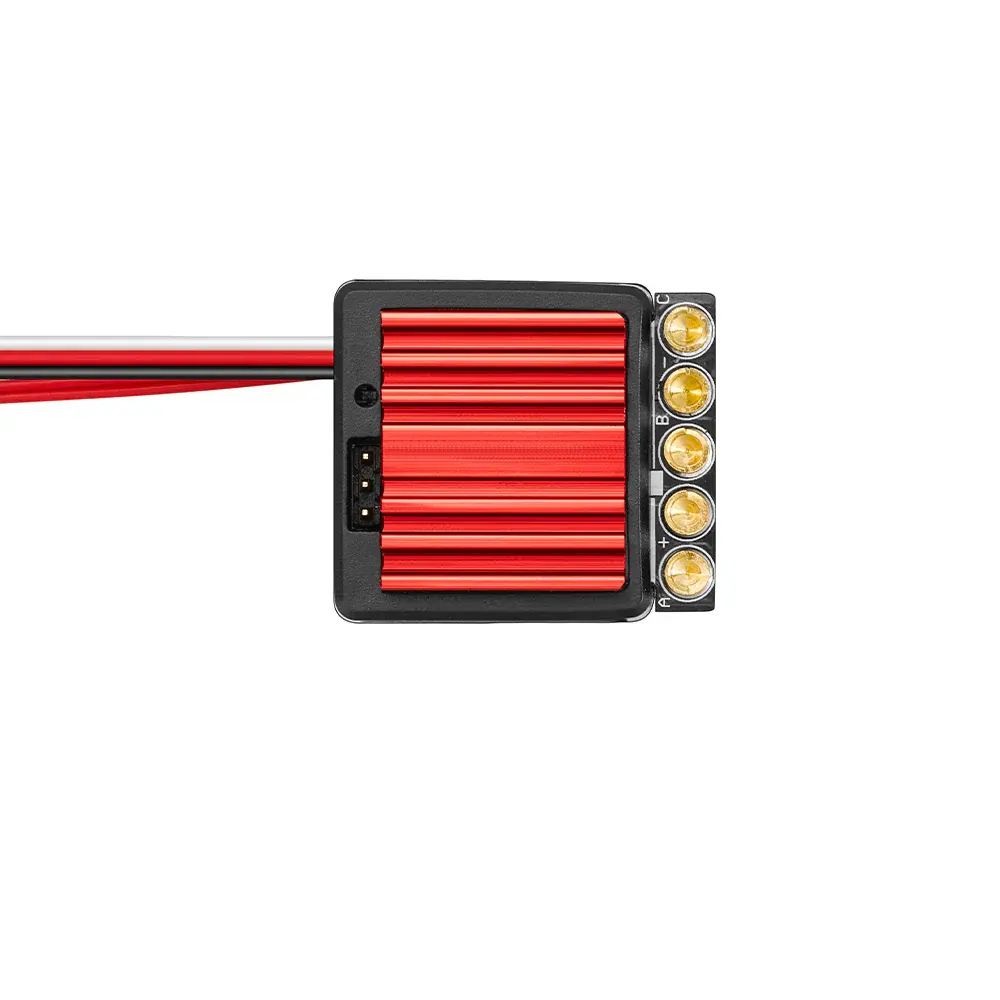

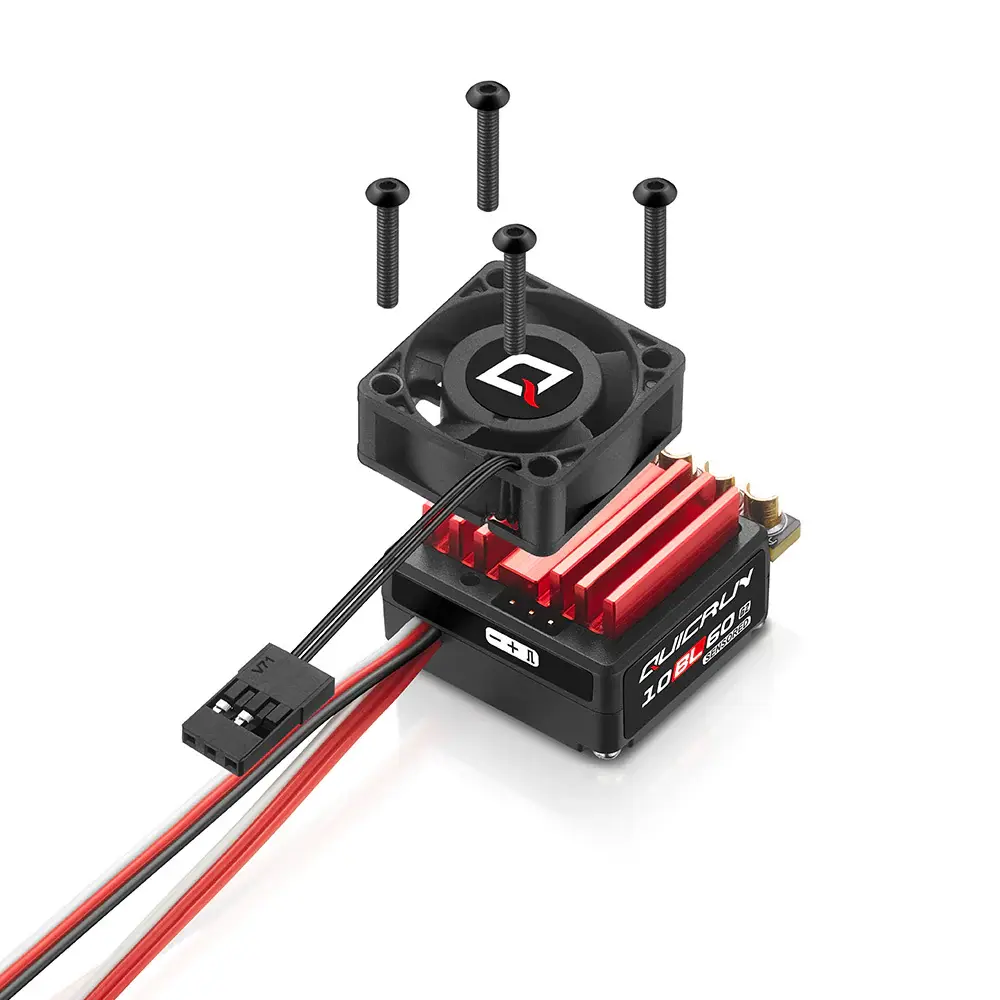

Factory description: Hobbywing QUICRUN 10BL60-SENSORED G2 Brushless ESC
