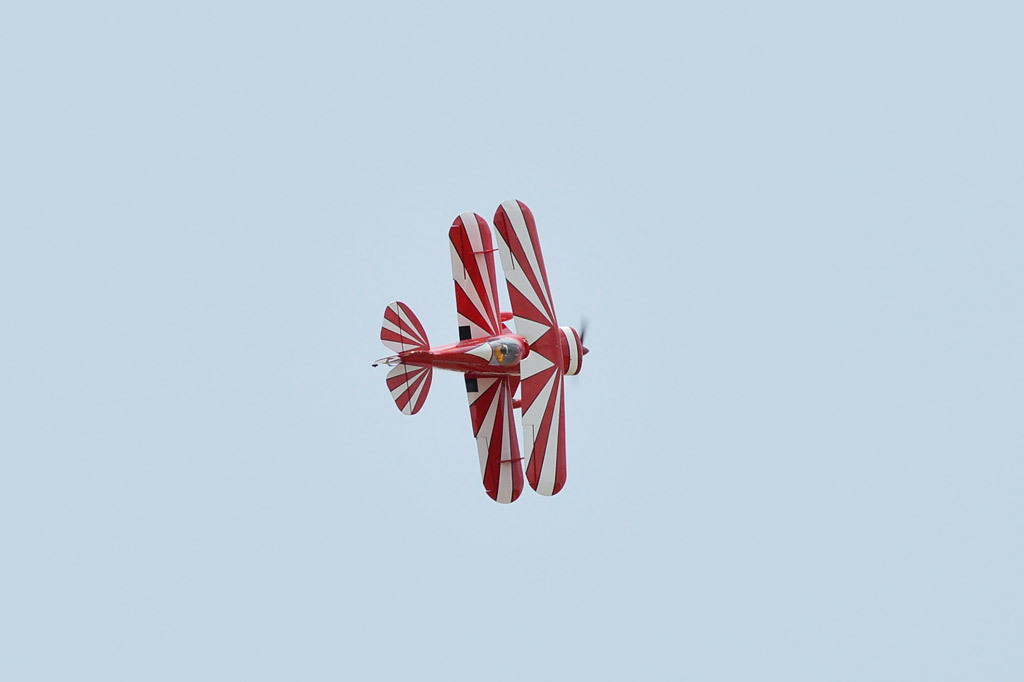

Pitts Special ARTF

Glow and EP

SPECIFICATION:
- Wingspan : 1,500mm 59.06 in).
- Length : 1,330mm (52.36 in).
- Weight : 4.7kg (10.34 lbs).
- Wing area: 74dm2.
- Wing loading: 64g/dm2.
- Wing type: Naca Airfoil.
- Gear type: Aluminium Hi-grade for main gear and spring wire for tail gear (included).

Parts listing required (not included):
- Radio:    06 channels.
- Servo:     07 servos.
- Servo mount: 21mm x 42mm
- Engine: 120 – 2 stroke; O.S.GT 22cc Gas.
- Motor: Brushless outrunner 1800-2300W, 450KV.
- Propeller: Suit with your engine.

Recommended motor and battery set up (not included):
- Motor:  RIMFIRE.120.
- Lipo cell: 6 cells 4,000-5,000mAh.
- ESC: 80A.
- Receiver battery: 6V/ 1200-2000mAh NiMH.

ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
