| Product Name |
|
Platinum HV 180A SBEC V5 |
| Product Number |
|
30209103 |
| Type |
Brushed/Brushless
High Voltage/Regular |
BL
High Voltage |
| Specifications |
Cont./Peak Current
Input Voltage
BEC Output |
180A/260A
6-14S LiPo

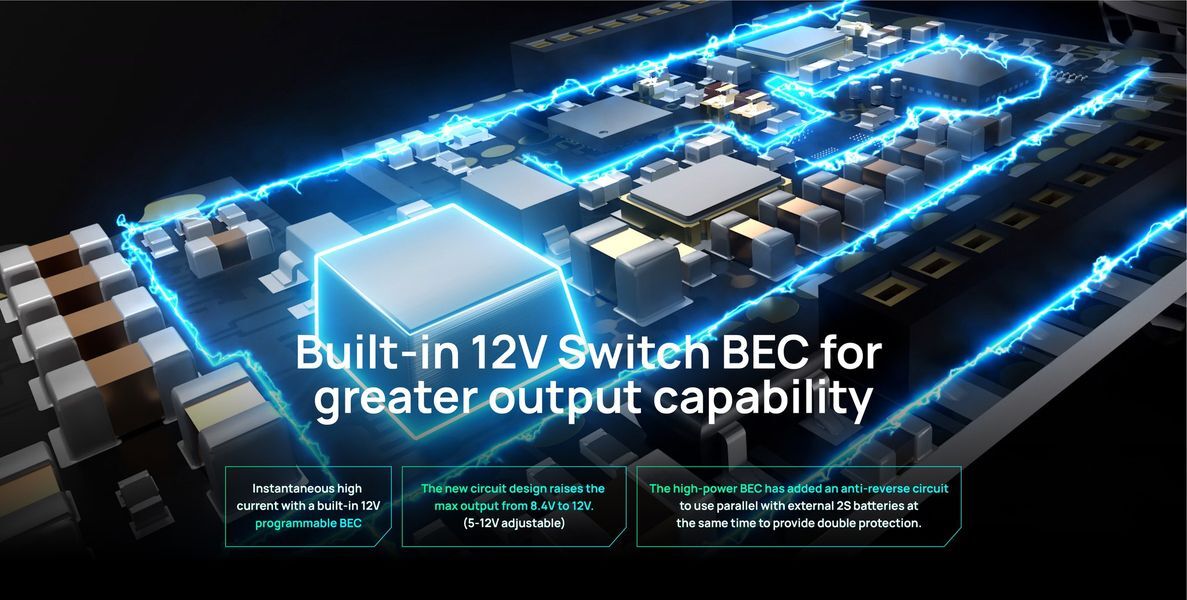

Switch Mode：5-12V & Cont. 10A，Peak 30A |
| Wires & Connectors |
Input Wires
Output Wires
Input Connectors
Output Connecotors |
Red-10AWG-255mm*1/Black-10AWG-255mm*1
Black-10AWG-150mm*3
No
No |
| ESC Programing via |
Transmitter
LED Program Card
LED Program Box
LCD Program Box
OTA Programmer
Program Port |
Not Support
Not Support
Not Support
Supported
Supported
Separate Program Port |
| Firmware |
Firmware Upgrade |
Supported |
| Telemetry Function |
|
Mikado VBar；Futaba S.Bus2；etc. |
| Size & Weight |
Size
Weight |
100.6*45.5*26.1mm (without fan)
250.6g (without fan) |
| Application scope |
|
550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing |
