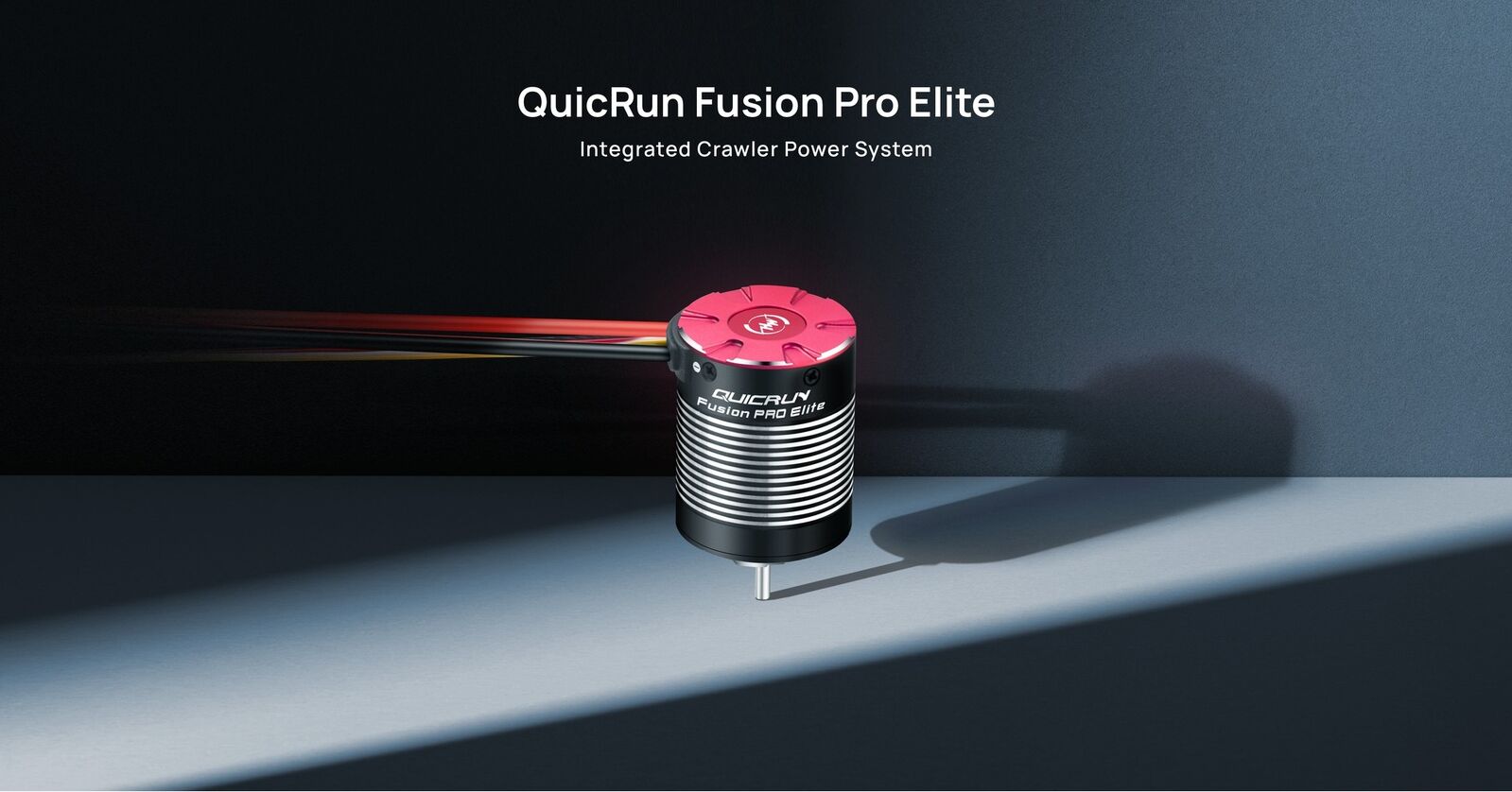

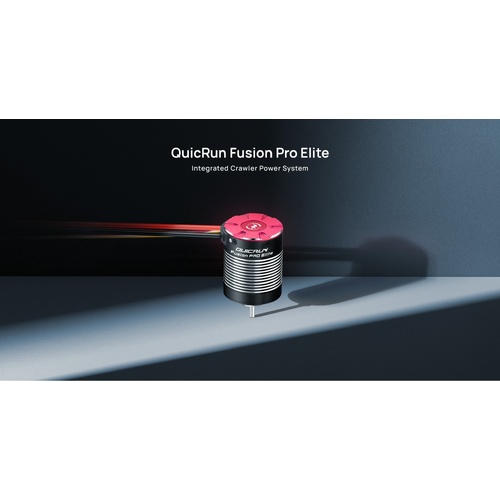

QuicRun Fusion Pro Elite

Product Number

•

• 30120500

Type

• Scale
• Brushed/Brushless
• Sensored/Sensorless
• Waterproof

• 1/10^th
• Brushless
• Sensored
• Waterproof

Specifications

• Cont./Peak Current
• Input Voltage
• BEC Output
• KV
• Motor Poles

• 50A/150A

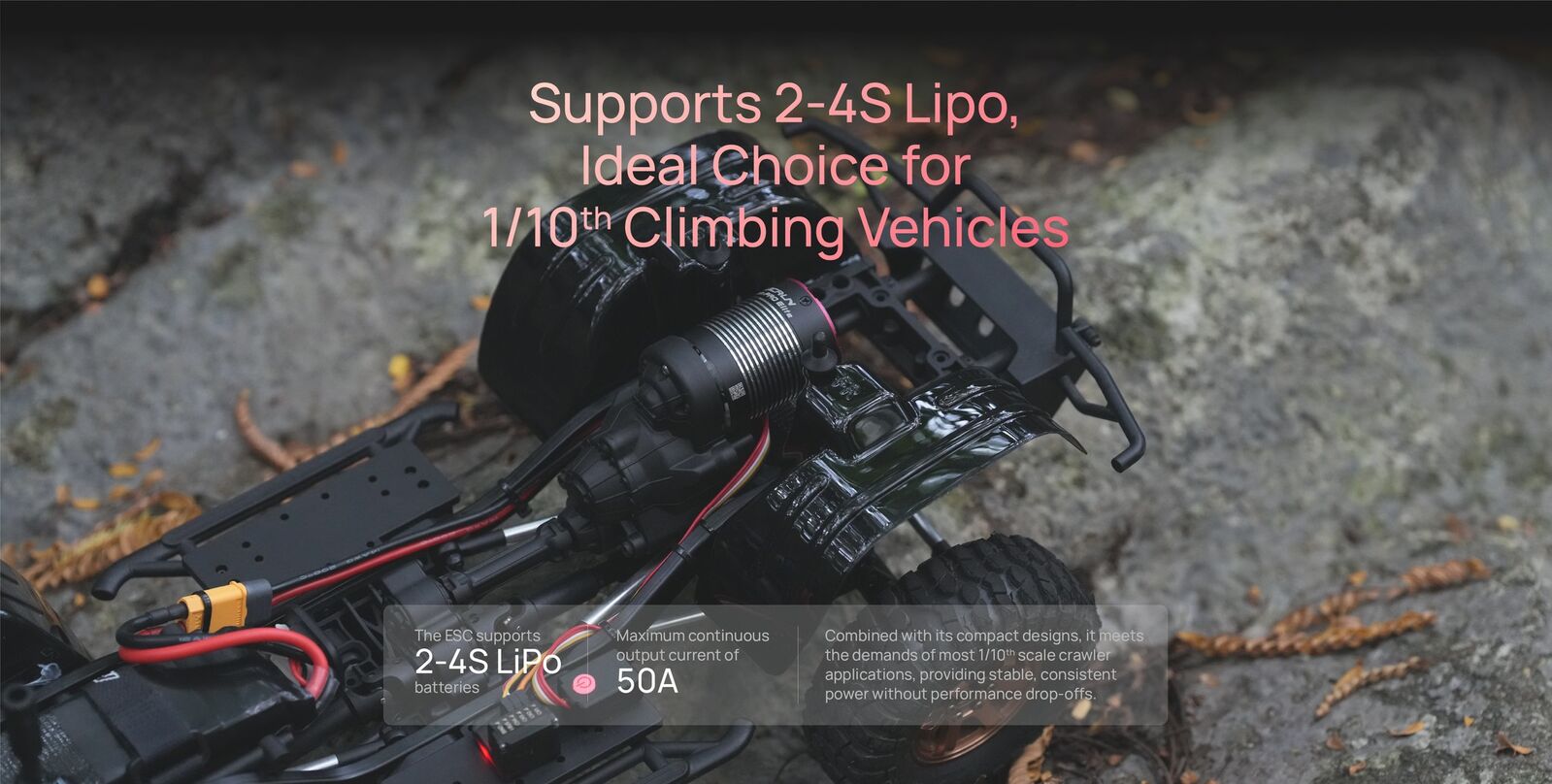

• 2-4S LiPo,6-12 Cells NiMH
• 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
• 2300KV
• 4

Wires & Connectors

• Input Wires
• Input Connectors

• Black-14AWG-220mm*1 Red-14AWG-220mm*1
• XT60

ESC Programing via

• SET Button on ESC
• LED Program Box
• LCD G2 Program Box/LCD PRO
• OTA Programmer
• Program Port

• Not Supported
• Supported
• Supported
• Not Supported
• Independent programming port(switch position)

Firmware

• Firmware Upgrade

• Not Supported

Size & Weight

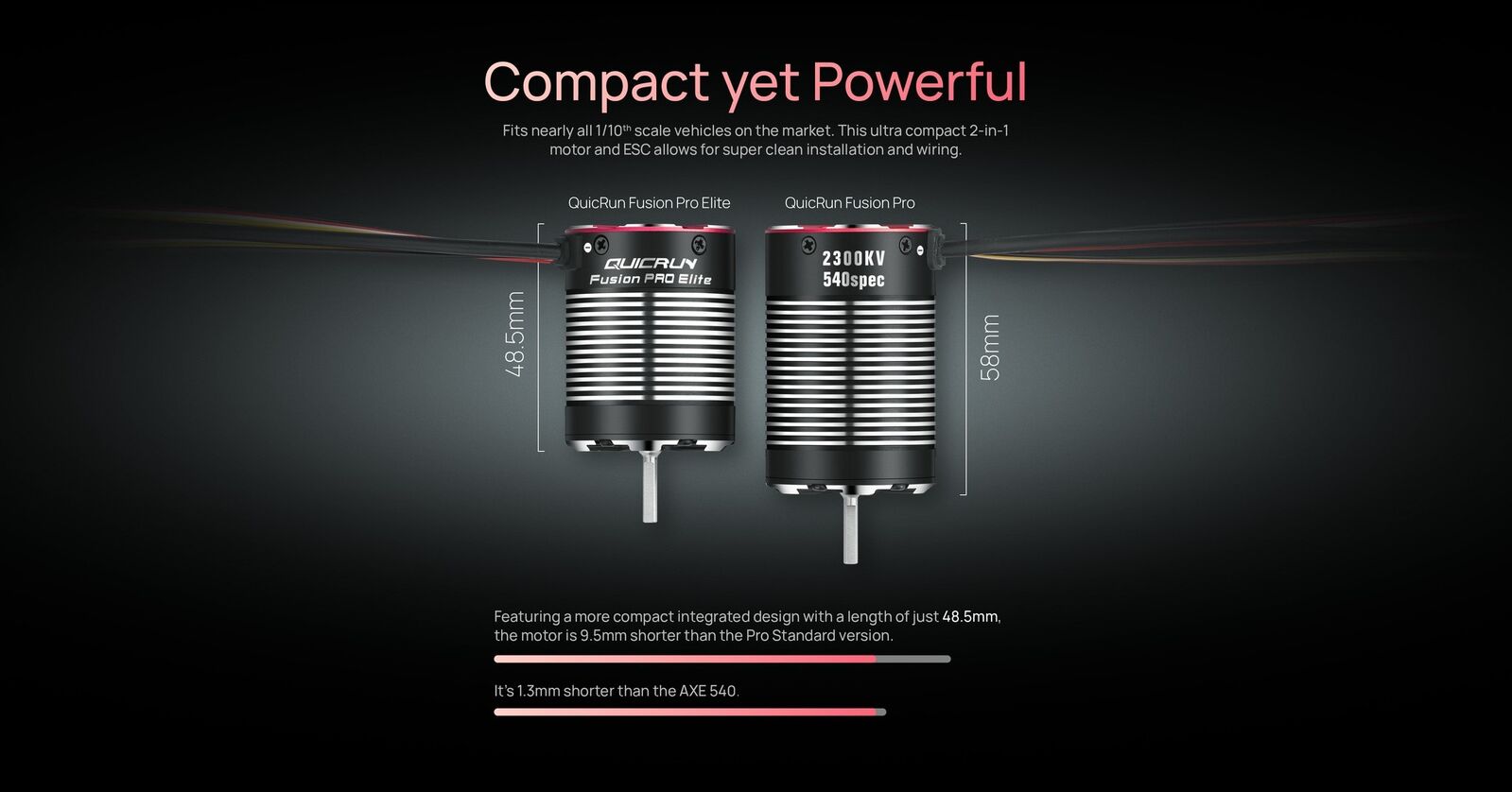

• Diameter / Length of motor
• Shaft diameter / exposed shaft length
• Weight

• 37mm/48.5mm
• 3.175mm/16mm
• 178.5g (including wires&connectors)

Applications

• Vehicles

• 1/10^th Crawlers
