XERUN XD10 Pro-Purple Drift spec

Specifications

Product Name

XERUN XD10 PRO

Product Number

30112614(Black),30112615(Red),30112616(Purple)

Type

Scale

1/10^th

Brushed/Brushless

BL

Sensored/Sensorless

SD

Waterproof

No

Specifications

Cont./Peak Current

100A/800A

Input Voltage

2S Lipo

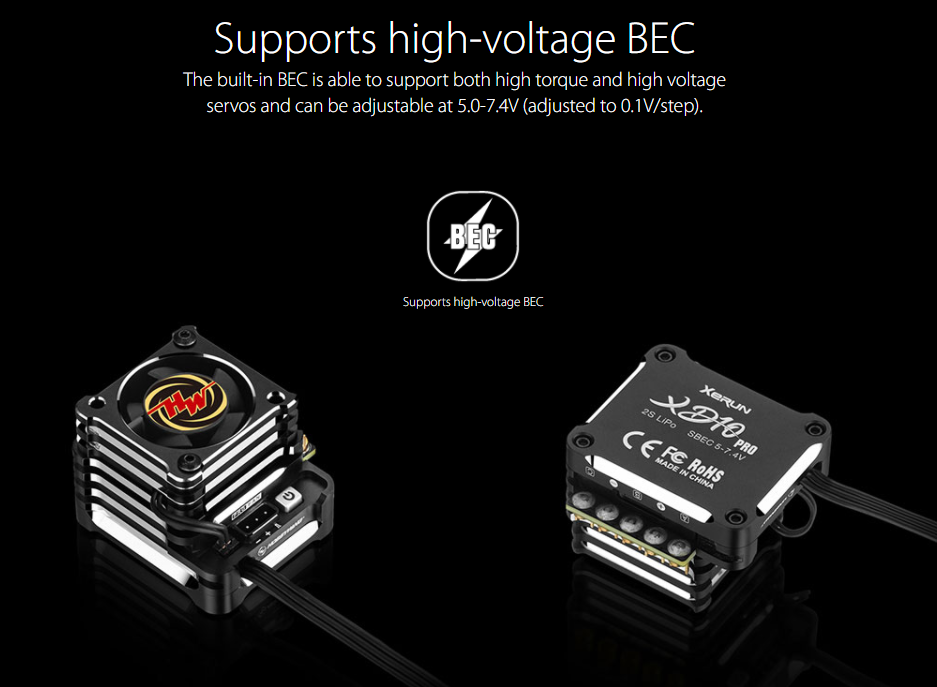

BEC Output

5-7.4V，5A

Wires & Connectors

Wires & Connectors

Black-13AWG-250mm*2

Output Wires

Black-13AWG-250mm*3

Input Connectors

No

Output Connectors

3.5mm male plug

Fan

Size

30x30x10mm

Voltage Range

5-7.4V

Powered by

Powered by BEC

ESC Programing via

SET Button on ESC

Not Supported

LED Program Box

Not Supported

LCD Program Box

Supported

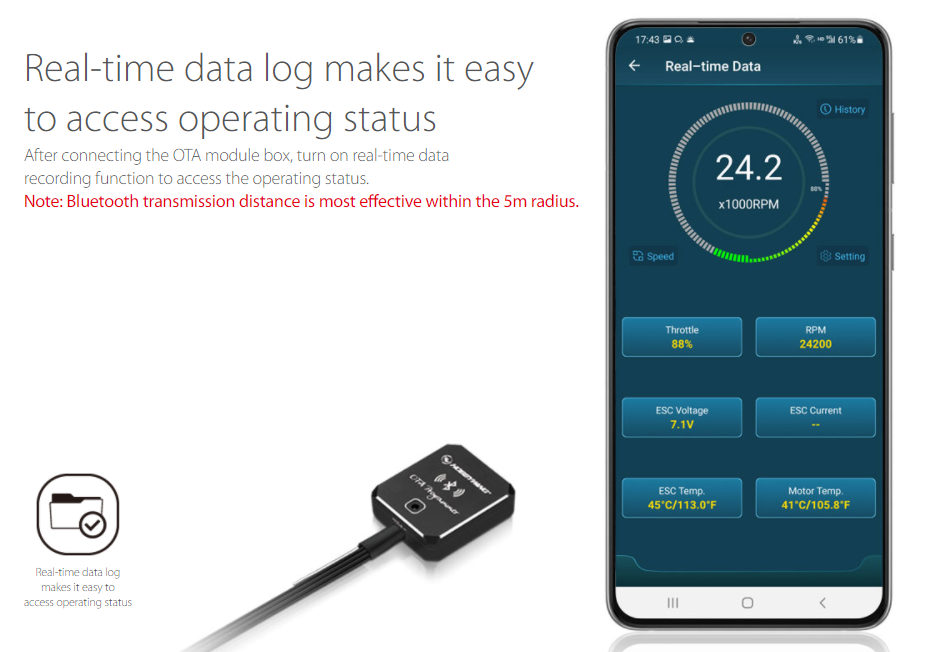

OTA Programmer

Supported

Programming Port

Independent programming port

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

40.7x35.0x32.0mm(w/Fan)

Weight

95g (w/wires)

Applications

Applications

SL BL Motors
SD BL Motors

Vehicles

1/10^thdrift car

KV Rating/T Count

≥8.5T
