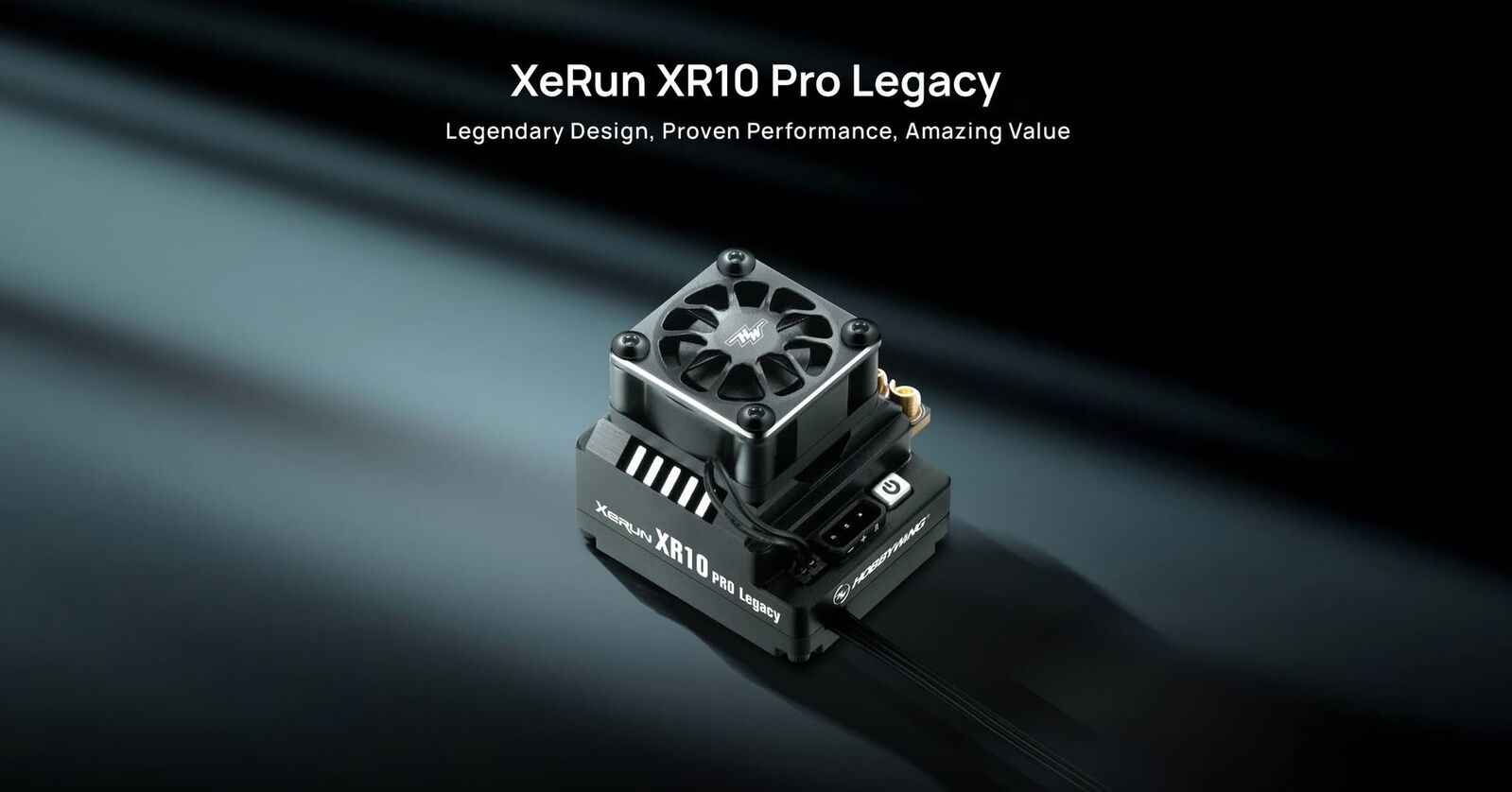

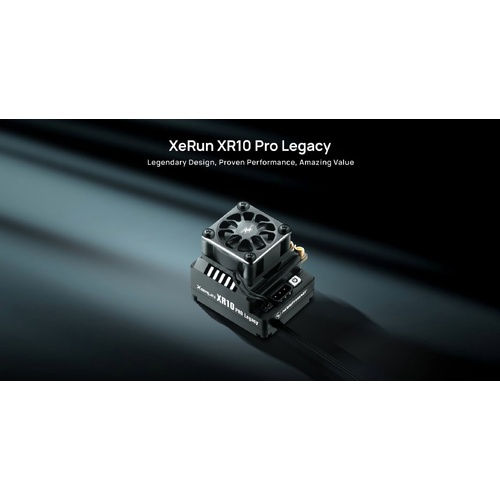

XERUN XR10 Pro-Legacy

Product Number

•

• 30112800

Type

• Scale
• Brushed/Brushless
• Sensored/Sensorless
• Waterproof

• 1/10^th
• Brushless
• Sensored
• No

Specifications

• Cont./Peak Current
• Input Voltage

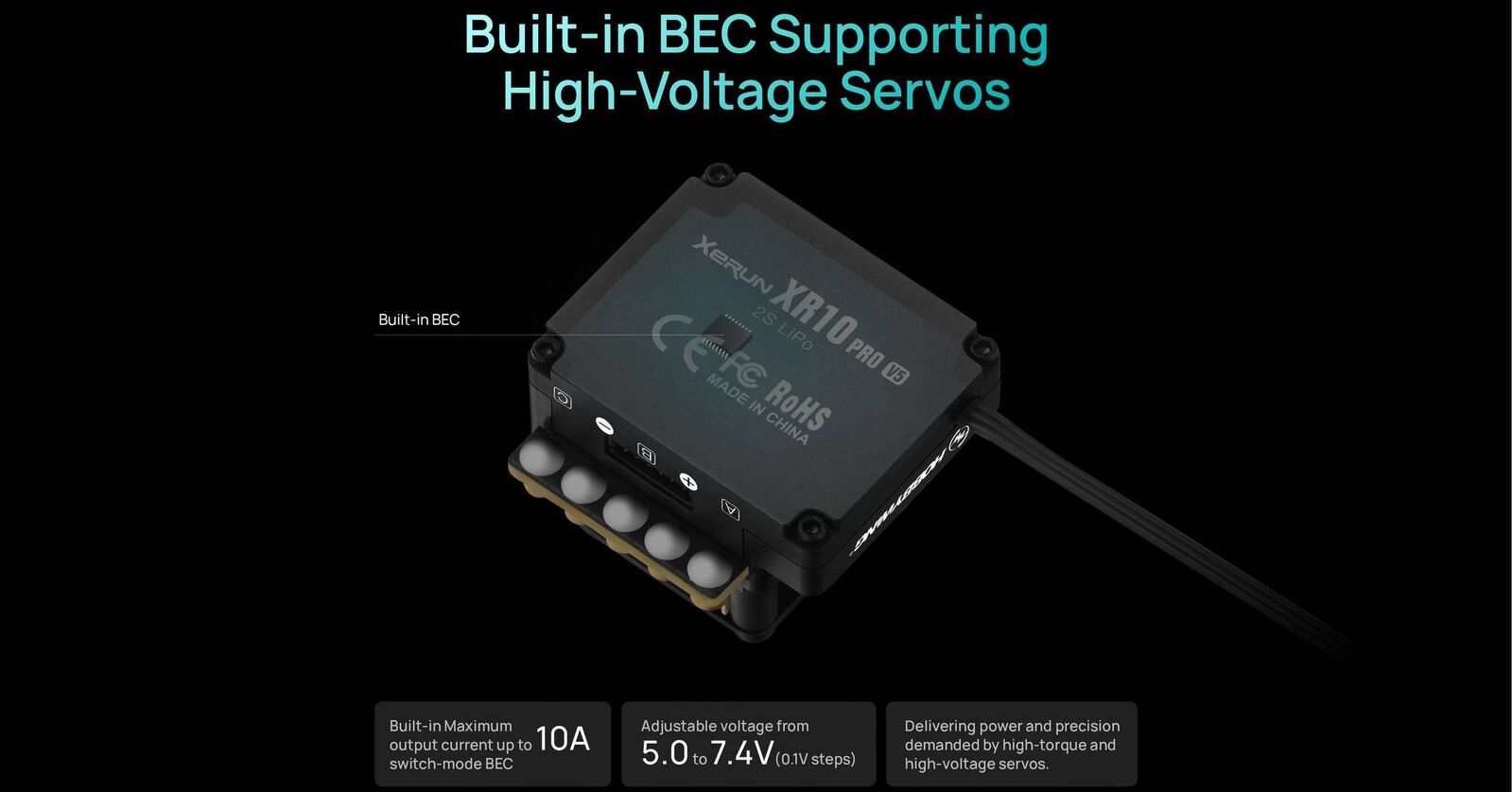

• BEC Output

• 150A/1000A
• 2S LiPo
• 5V-7.4V,5A

Wires & Connectors

• Input Wires
• Output Wires
• Input Connectors
• Output Connectors

• Black-13AWG-200MM*2
• Black-13AWG-200MM*3
• No
• No

ESC Programing via

• SET Button on ESC
• LED Program Box
• LCD G2 Program Box
• LCD PRO

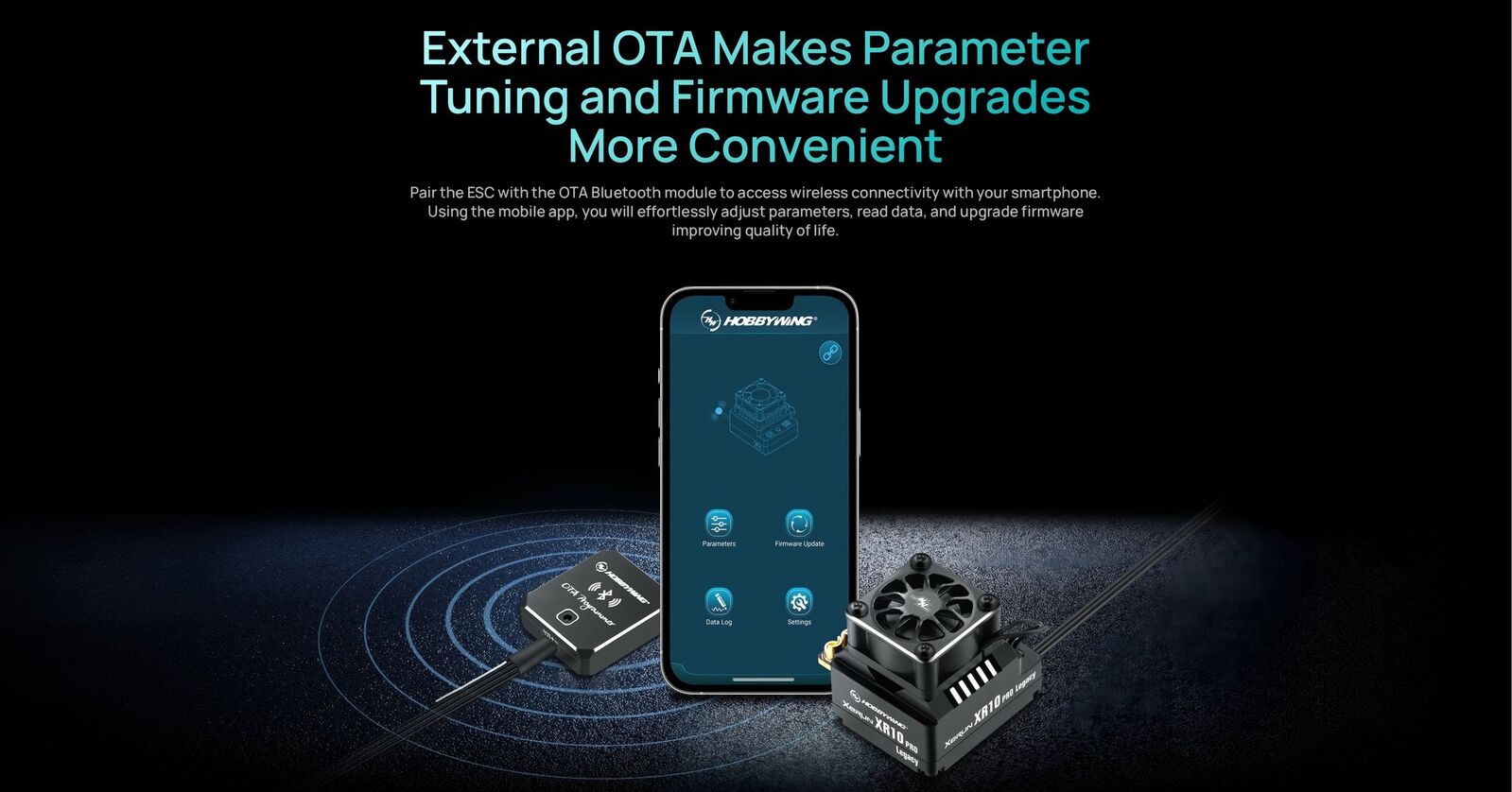

• OTA Programmer
• Program Port

• Not Supported
• Not Supported
• Supported
• Supported
• Supported
• Independent program port

Data Recording

• Extreme value

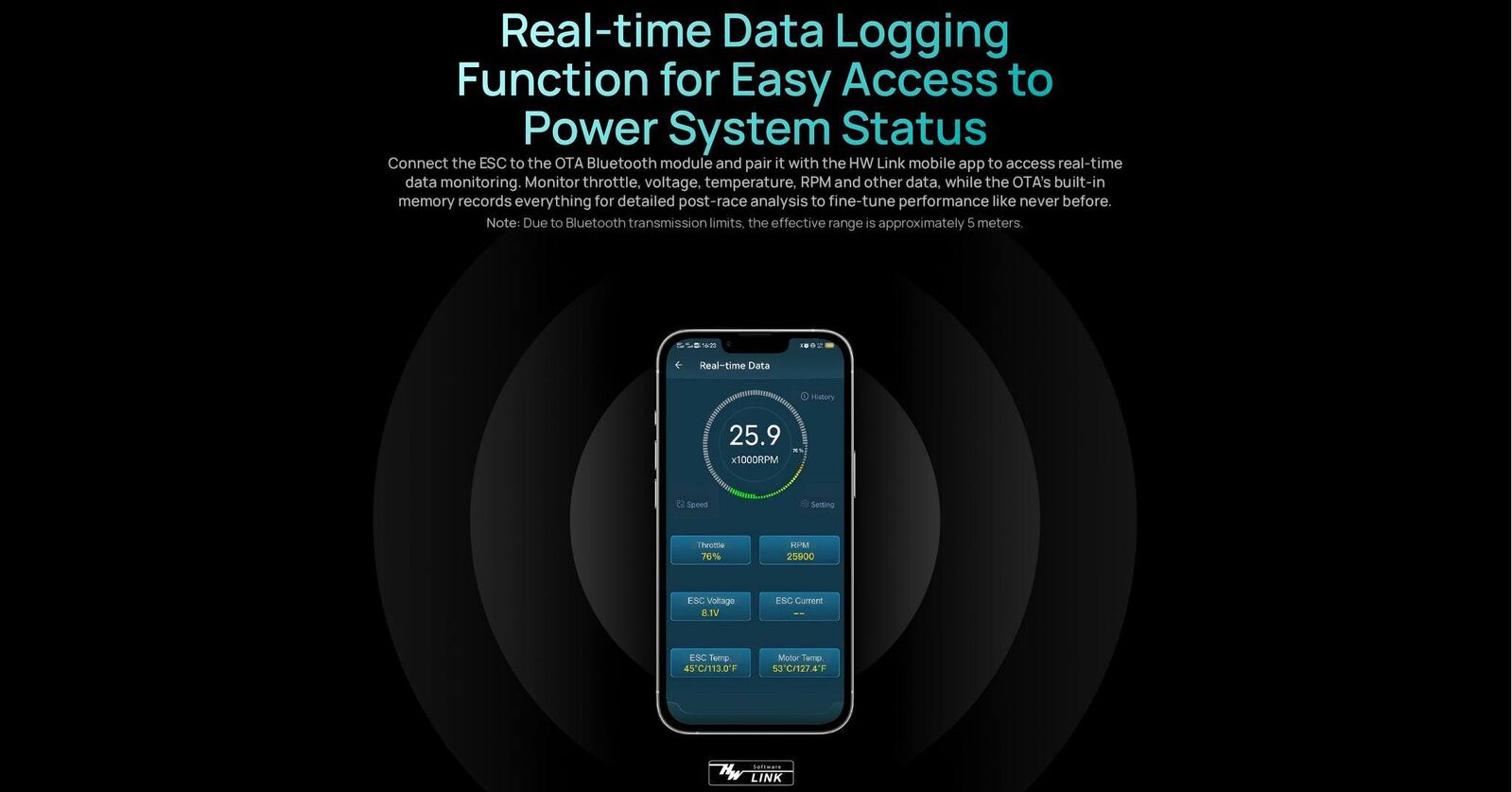

• Real-time Data
• Historical data (Graph)

• Supported
• Supported
• Supported

Firmware

• Firmware Upgrade

• Supported

Size & Weight

• Size
• Weight

• 37.7*37.0*33.2mm
• 94.2g( Included wires & connectors)

Applications

• Motors
• Vehicles
• KV Rating/T Count

• Sensorless Brushless/Sensored Brushless Motor
• 1/10^th On-Road/Off-Road Racing,1/10^th Drift/F1/Rally
• 3650 (540) size 2-pole motor, On-Road ≥ 4.5T≥ Off-Road ≥ 5.5T
