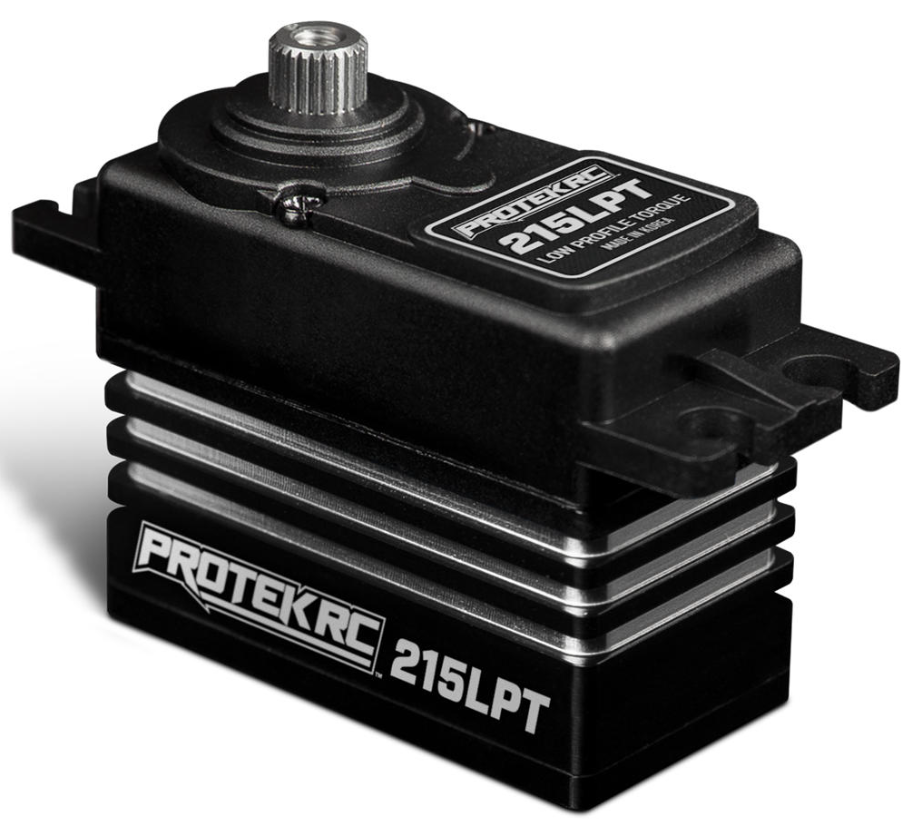

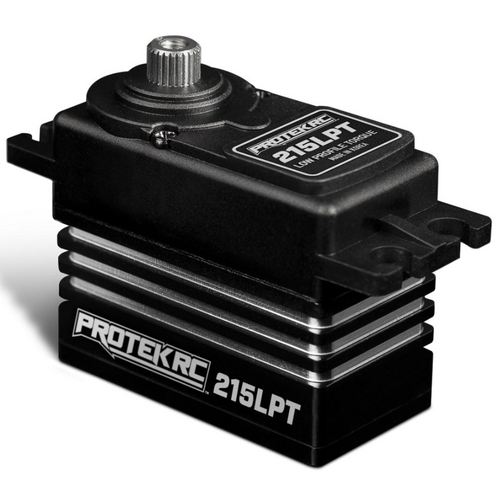

ProTek RC 215LPT Low Profile High Torque Metal Gear Servo (High Voltage)
Register or login to view pricing
ProTek RC 215LPT Low Profile Racing Servo
Need high performance in a compact package? The ProTek R/C 215LPT Low Profile High Torque Metal Gear Servo delivers impressive speed, strong torque, and race-ready reliability in a lightweight design built for 1/10 scale vehicles. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 215LPT Low Profile Servo
Compact Racing Power
Need high performance in a compact package? The ProTek R/C 215LPT Low Profile High Torque Metal Gear Servo delivers impressive speed, strong torque, and race-ready reliability in a lightweight design built for 1/12 and 1/10 scale vehicles.
Refined Reliable Performance
Building on the trusted ProTek R/C 140T Low Profile Digital "High Torque" Servo, the 215LPT is a refined upgrade featuring increased torque output, faster response, and enhanced reliability. Its metal gear train, dual ball bearings, high-voltage circuitry, and aluminum center case deliver smooth, durable performance.
Low Profile Advantage
Designed for racers who need maximum performance without sacrificing space, the 215LPT combines lightweight construction with dependable power at an affordable price. Its low-profile case, heat-dissipating aluminum case, and flexible installation options make it an excellent choice for demanding 1/10 applications.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Low-profile design saves space and reduces weight
- Up to 230 oz-in of torque at 8.4V for strong steering power
- Ultra-fast 0.07-second transit speed for quick response
- Full metal gear train provides lasting durability
- Dual ball bearings deliver smooth and precise operation
- Aluminum center case helps improve heat dissipation
- High-voltage circuitry supports increased performance output
- Perfect choice for 1/10 off-road and on-road racing
- Coreless motor delivers efficient and reliable performance
Includes:
- (1) Lifetime Gear Warranty
- (1) 215LPT Low Profile Metal Gear Servo
- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application | 1:10 & 1:8 Off-Road |
|---|---|
| Operating Voltage | 6.0V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.010/60° sec |
| Operating Speed @ 7.4V | 0.08/60° sec |
| Operating Speed @ 8.4V | 0.07/60° sec |
| Dynamic Torque @ 6.0V | 185oz-in (13.3 kg-cm) |
| Dynamic Torque @ 7.4V | 215 oz-in (15.5 kg-cm) |
| Dynamic Torque @ 8.4V | 230oz-in (16.6 kg-cm) |
| Motor Type | Coreless Motor |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.75oz (49.8g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.55x1.2x0.78in (39.50x30.5x20mm) |
| Length (Bottom to Mount) | 0.77in (19.7mm) |
(PTK-215LPT)
| SKU | PTK-215LPT |
| Barcode # | 694485097718 |
| Brand | ProTek RC |
