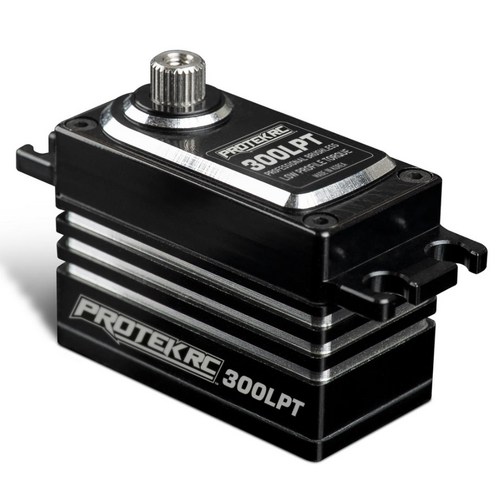

ProTek RC 300LPT Low Profile High Torque Brushless Servo (High Voltage/Metal Case)
Register or login to view pricing
ProTek RC 300LPT Low Profile Racing Servo
Built for racers who demand the ultimate edge, the ProTek RC 300LPT Low Profile High Torque Brushless Servo delivers championship-proven speed, precision, and reliability in a lightweight 55g package. Refined from a trusted race-winning design, this brushless powerhouse gives competitive 1/10 drivers the lightning-fast response and control needed to chase the podium. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 300LPT Low Profile Servo
Race Proven Design
The ProTek RC 300LPT Low Profile High Torque Brushless Servo is built for competitive 1/10 racers demanding maximum performance in a compact package. Trusted by professional racers, including Ryan Maifield’s ROAR 4WD Off-Road National Championship-winning setup, this servo delivers the speed, precision, and reliability needed to compete at the highest level.
Ultra Fast Response
Refined from the proven and trusted ProTek RC 160TBL servo, the 300LPT takes race-proven performance to the next level with advanced brushless technology. Delivering an incredible 0.06-second response speed and up to 290 oz-in of torque, this lightweight 55g servo provides lightning-fast steering, exceptional accuracy, and the efficiency needed for today’s demanding race platforms.
Built For Victory
The 300LPT combines premium performance with a sleek, durable design featuring a full black anodized aluminum case with gold accents. The heat-sink center case improves cooling while reducing weight, and the included aluminum single-arm clamping servo horn and mounting washers provide a secure, rock-solid installation. For racers chasing every advantage, the 300LPT is a true pro-level upgrade.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Proven low-profile race servo trusted by professional racers
- Refined version of the ProTek RC 160TBL servo
- High-performance brushless motor for smooth, precise control
- Ultra-fast 0.06-second response speed at 7.4V
- Delivers up to 290 oz-in of torque
- Lightweight 55g design for competitive race builds
- Full black anodized aluminum case with gold accents
- Heat-sink center case improves cooling and reduces weight
- Full metal gears and dual ball bearings provide lasting durability
Includes:
- (1) Lifetime Gear Warranty
- (1) 300LPT Low Profile High Torque Brushless Servo
- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application | 1:10 Scale |
|---|---|
| Operating Voltage | 6.0V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.08/60° sec |
| Operating Speed @ 7.4V | 0.06/60° sec |
| Dynamic Torque @ 6.0V | 230oz-in (16.5 kg-cm) |
| Dynamic Torque @ 7.4V | 290oz-in (20.9 kg-cm) |
| Motor Type | Brushless Digital |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.94oz (55g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.55x0.79x1.2in (39.5x20x30.6mm) |
| Length (Bottom to Mount) | 0.76in (19.35mm) |
*Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
(PTK-300LPT)
| SKU | PTK-300LPT |
| Brand | ProTek RC |
