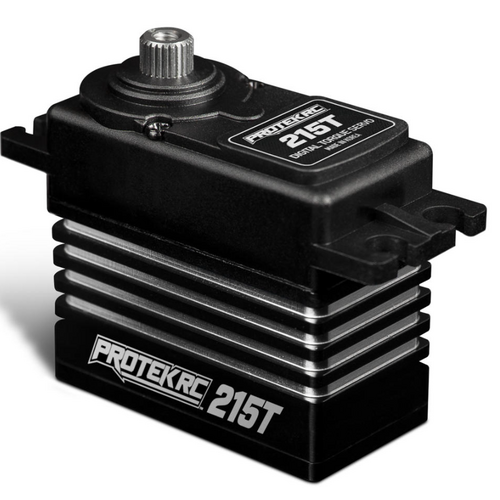

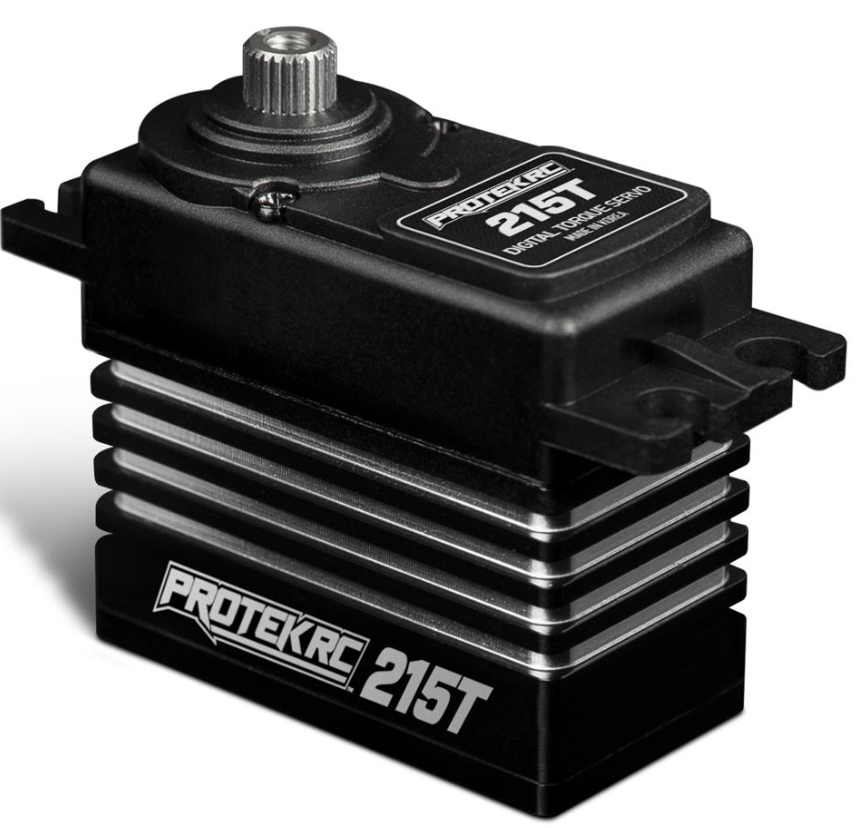

ProTek RC 215T Standard Digital "High Torque" Metal Gear Servo
Register or login to view pricing
ProTek RC 215T Standard Racing Servo
Need reliable steering power without the premium price? The ProTek R/C 215T Digital High Torque Servo delivers proven durability, smooth response, and dependable torque in a race-ready metal gear design built for 1/10 scale on-road and off-road performance. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 215T Standard Servo
Reliable Torque Performance
The ProTek R/C 215T Digital Torque Metal Gear Servo delivers dependable steering power with 216 oz-in of torque at 6.0V and a responsive 0.14-second transit speed. Designed for 1/10 scale on-road and off-road vehicles, it provides smooth control and consistent performance for racers and enthusiasts.
Refined Reliable Design
Building on the trusted performance of the ProTek R/C PTK-100T Digital "High Torque" Servo, the 215T is a refined upgrade featuring improved durability and efficiency. Its full metal gear train, dual ball bearings, cored motor, and aluminum middle case deliver reliable operation and long-lasting performance.
Exceptional Value
The 215T combines ProTek quality with an accessible price point, making it an excellent option for drivers looking for dependable torque without unnecessary cost. With gold-plated connectors, a durable aluminum center case, and a 200mm 22awg wire, this servo is built to perform in demanding RC applications.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- 216 oz-in of torque at 6.0V for strong steering power
- Fast 0.14-second transit speed for responsive control
- Designed for 1/10 scale on-road and off-road vehicles
- Full metal gear train provides reliable durability
- Dual ball bearings ensure smooth operation
- Aluminum middle case helps dissipate heat
- Cored motor delivers dependable performance and efficiency
- Gold-plated connectors improve signal reliability
- ProTek quality performance at an affordable price point
Includes:
- (1) Lifetime Gear Warranty
- (1) 215T Standard Metal Gear Servo
- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application | 1:10 & 1:8 Off-Road |
|---|---|
| Operating Voltage | 4.8V - 6.0V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 4.8V | 0.17/60° sec |
| Operating Speed @ 6.0V | 0.14/60° sec |
| Dynamic Torque @ 4.8V | 173 oz-in (12.5 kg-cm) |
| Dynamic Torque @ 6.0V | 216oz-in (15.6 kg-cm) |
| Motor Type | Cored DC |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.93oz (54.9g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.55x1.51x0.78in (39.50x38.6x20mm) |
| Length (Bottom to Mount) | 1.04in (26.6mm) |
*Tech Note: This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.
(PTK-215T)
| SKU | PTK-215T |
| Barcode # | 694485097725 |
| Brand | ProTek RC |
