QUICRUN WP 10BL80 Crawler

Product NameQUICRUN WP 10BL80 Crawler

Product Number

•

• 30108002

Type

• Scale
• Brushed/Brushless
• Sensored/Sensorless
• Waterproof

• 1/10^th
• Brushless
• Sensorless
• Waterproof

Specifications

• Cont./Peak Current
• Input Voltage

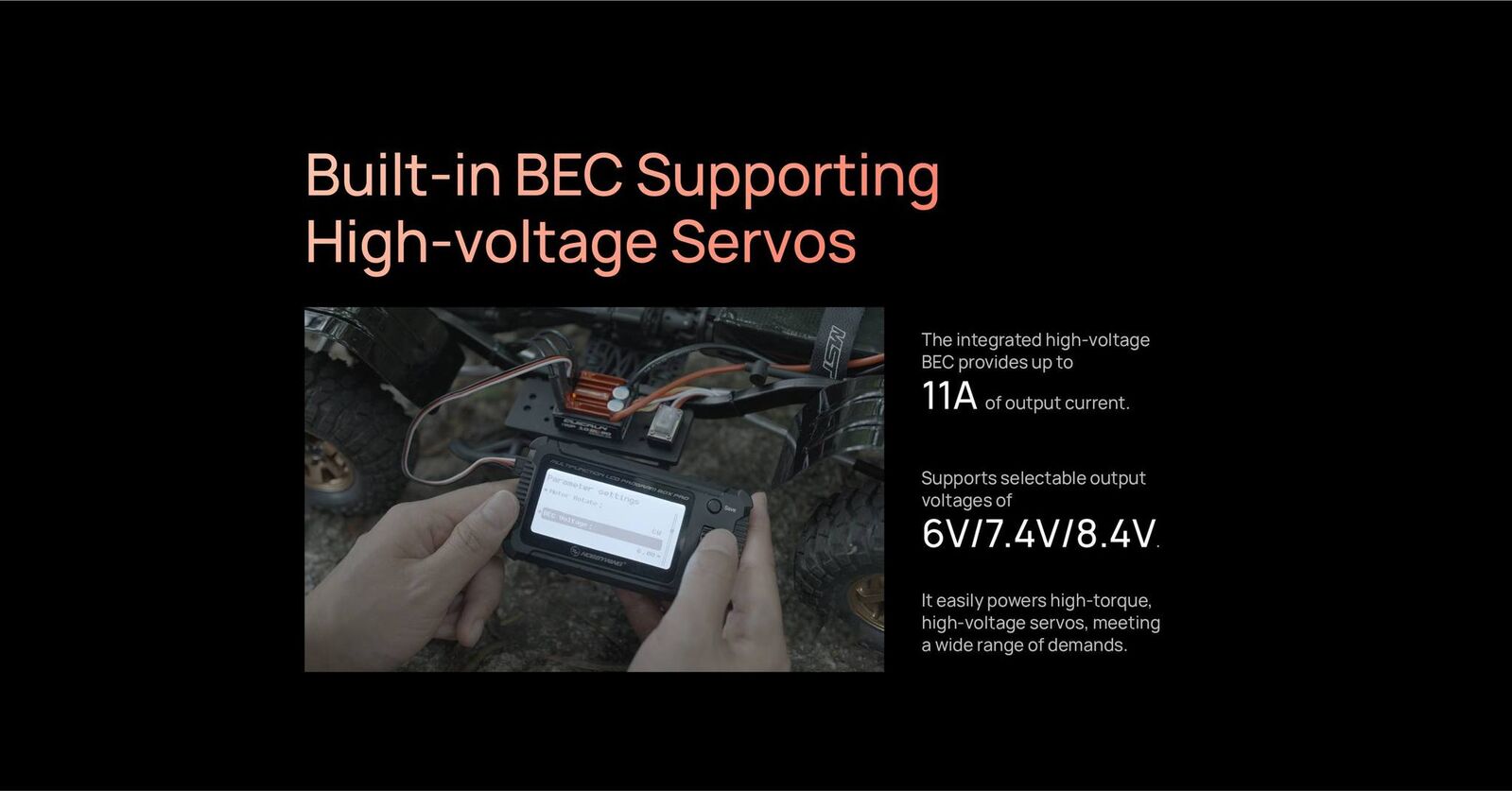

• BEC Output

• 80A/240A
• 2-4S LiPo
• 6V/7.4V/8.4V,5A

Wires & Connectors

• Input Wires
• Output Wires
• Input Connectors
• Output Connectors

• Black-14AWG-175mm*1,Red-14AWG-175mm*1
• No
• XT60
• 3.5MM Gold (female)

ESC Programing via

• SET Button on ESC
• LED Program Box
• LCD G2 Program Box
• LCD PRO
• OTA Programmer
• Program Port

• Supported
• Supported
• Supported
• Supported
• Not Supported
• Independent program port

Data Recording

• Extreme value
• Real-time Data
• Historical data (Graph)

• Not Supported
• Not Supported
• Not Supported

Firmware

• Firmware Upgrade

• Not Supported

Size & Weight

• Size
• Weight

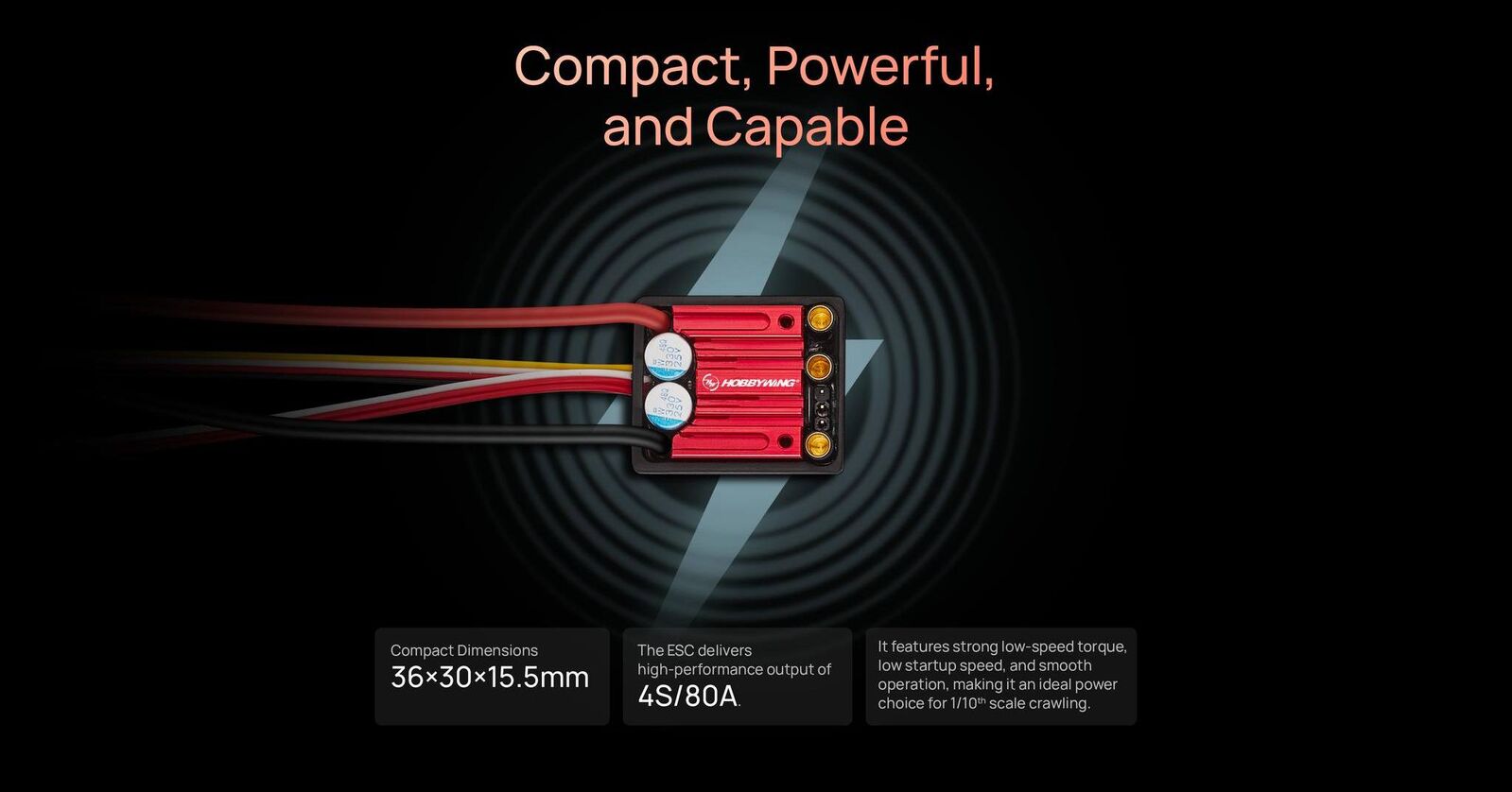

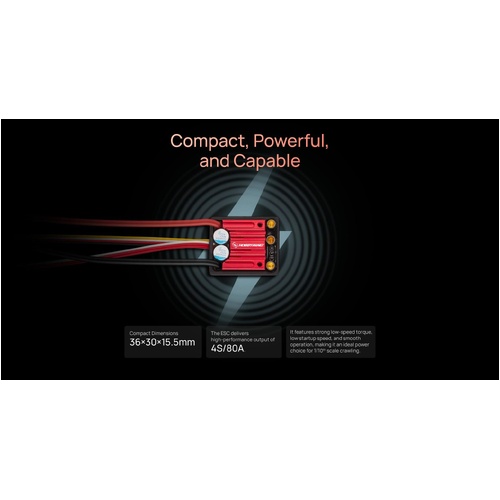

• 36*30*15.5mm
• 47.8g( Included wires & connectors)

Applications

• Motors
• Vehicles
• KV Rating/T Count

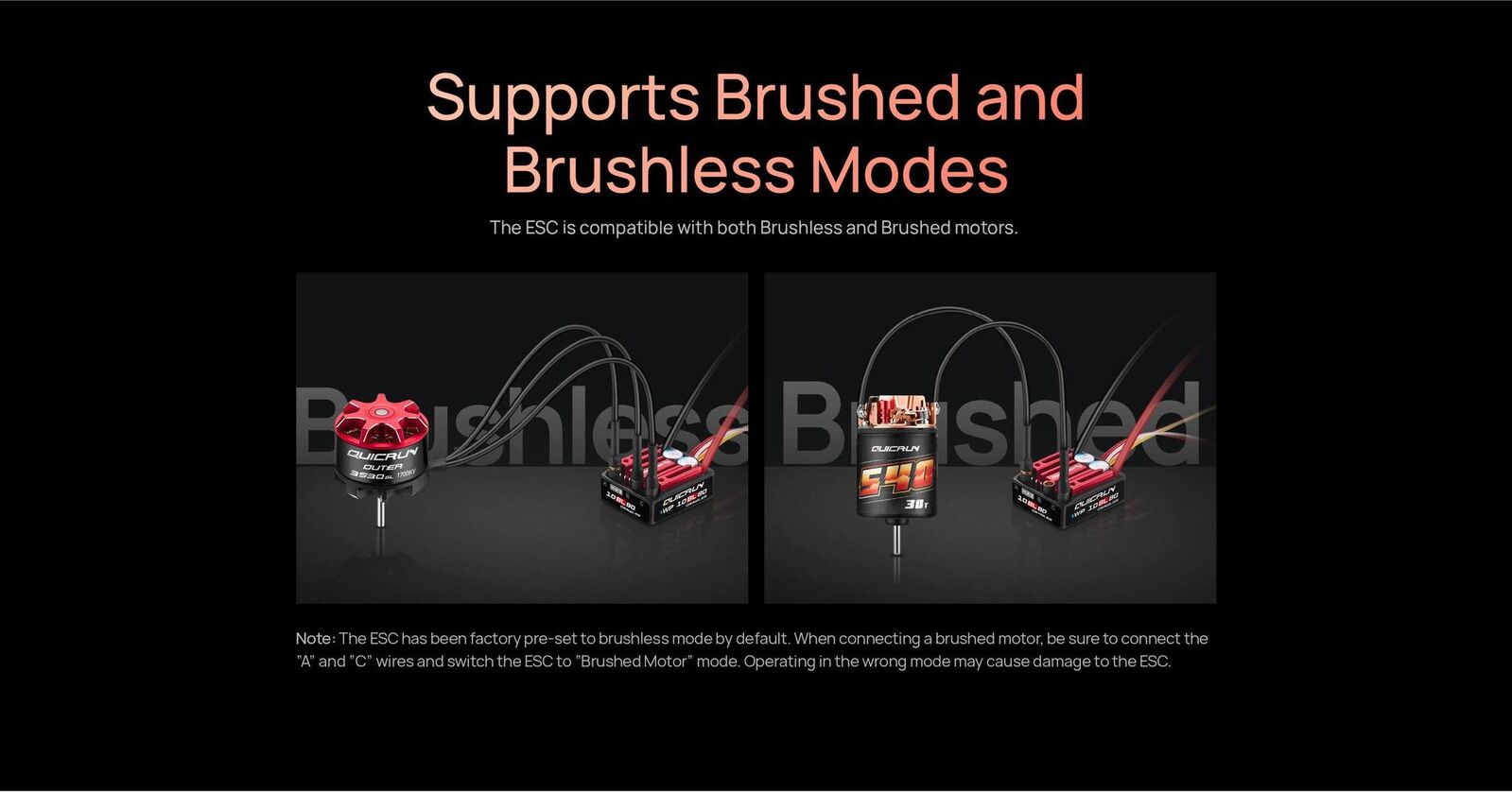

• Sensorless / Sensored Brushless Motor
• 1/10^th Crawlers
• Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors
