QuicRun WP16BL30 G2 Brushless ESC 30A 2-3s for 1:16

Product Number

•

• 30110001

Type

• Scale
• Brushed/Brushless
• Sensored/Sensorless
• Waterproof

• 1/16^th、1/18^th
• Brushless
• Sensorless
• Waterproof

Specifications

• Cont./Peak Current
• Input Voltage
• BEC Output

• 30A/100A
• 2-3S
• 6V/7.4V,2A

Wires & Connectors

• Input Wires
• Output Wires
• Input Connectors
• Output Connectors

• Black-16AWG-75mm*1,Red-16AWG-75mm*1
• Black-16AWG-60mm*3
• XT60
• 3.5MM Gold (female)

ESC Programing via

• SET Button on ESC
• LED Program Box
• LCD G2 Program Box
• LCD PRO
• OTA Programmer
• Program Port

• Supported
• Supported
• Supported
• Supported
• Not Supported
• Shared with Throttle Wire

Data Recording

• Extreme value
• Real-time Data
• Historical data (Graph)

• Not Supported
• Not Supported
• Not Supported

Firmware

• Firmware Upgrade

• Not Supported

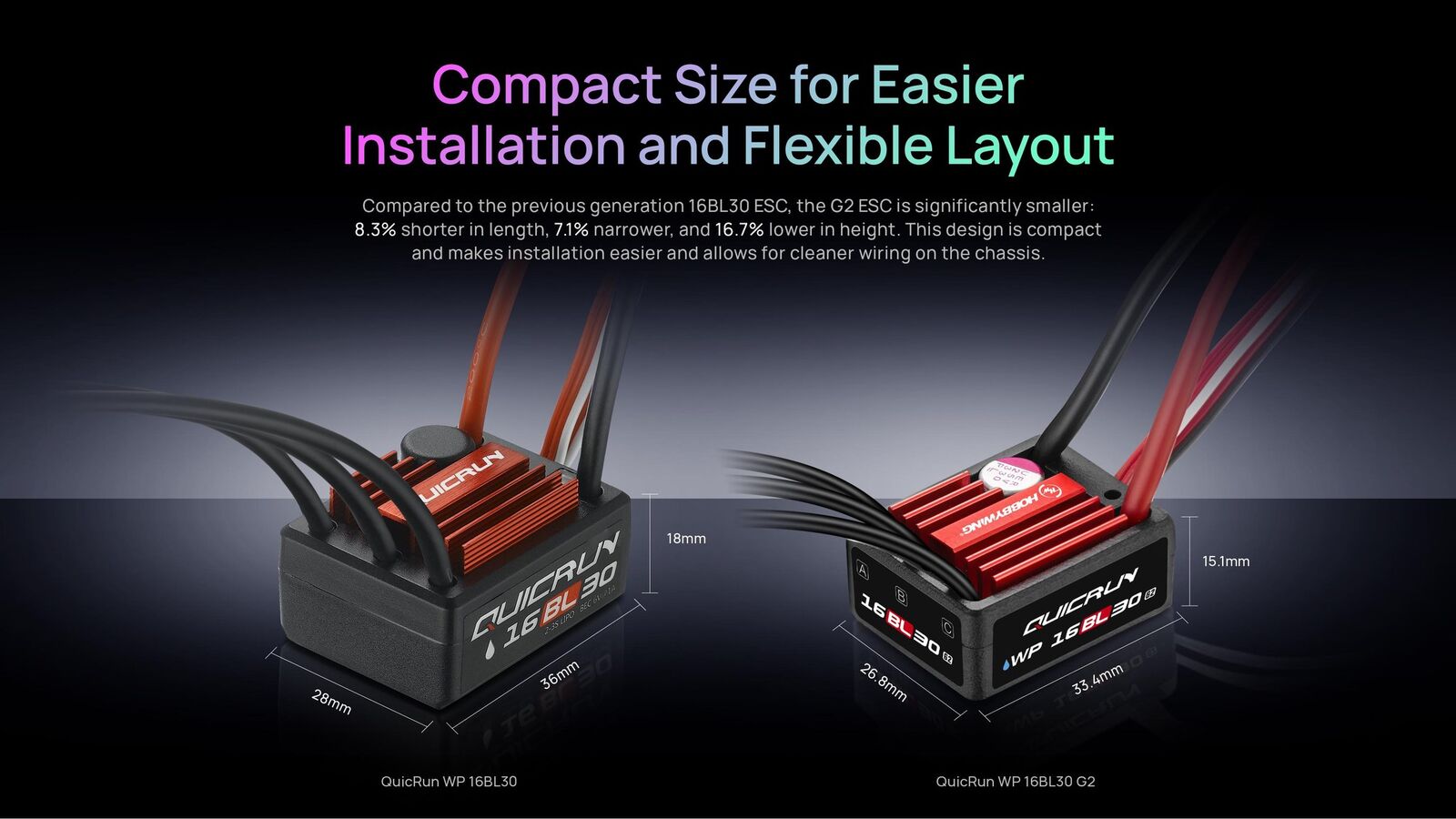

Size & Weight

• Size
• Weight

• 33.4*26.8*15.1mm
• 38.5g( Included wires & connectors)

Applications

• Motors
• Vehicles
• KV Rating/T Count

• Sensorless / Sensored Brushless Motor (only in sensorless mode)
• 1/16^th、1/18^th On-Road & Off-Road
• QUICRUN 2435 G2
