RC4WD Bilstein SZ Series Shock Absorbers (90mm)

RC4WD Bilstein SZ Series Shock Absorbers (90mm)

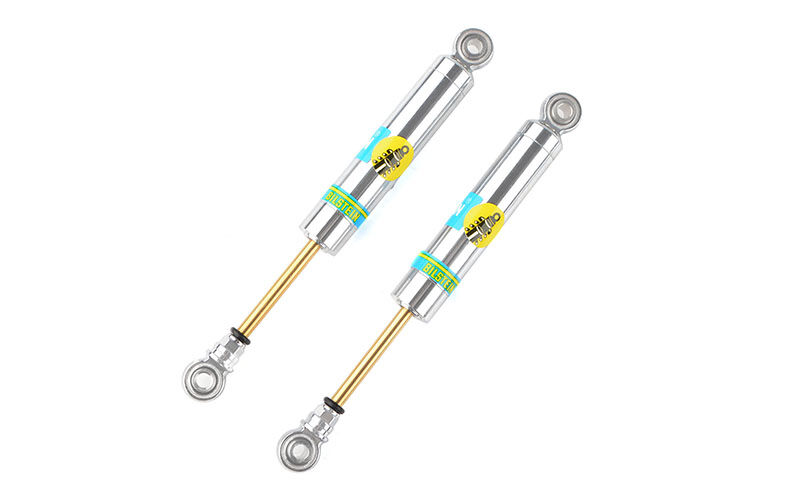

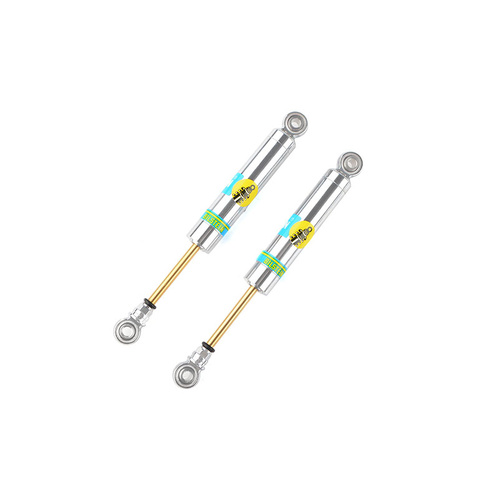

These are the all new RC4WD Bilstein SZ Series Shock Absorbers (90mm). These have been Officially Licensed by Bilstein and are only available from RC4WD and our Dealers.

These feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft.

Specifications:

• Machined Billet Aluminum
• Chrome Plated Finish
• Internal Spring Design
• Hole to Hole (Compressed): 2.63in / 67mm
• Hole to Hole (Uncompressed): 3.54in / 90mm
• Overall Length: 3.91in / 99.4mm
• Travel Length: 0.90in / 23mm
• Shock Body OD: 0.39in / 10mm
• Shaft OD: 0.11in / 3.0mm
• Each Weighs: 0.38oz / 11.0g

Shown installed on RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set for example (Not Included)

What’s Included:

• 2x RC4WD Bilstein SZ Series Shock Absorbers (90mm)
• 1x Bilstein Decal Sheet
