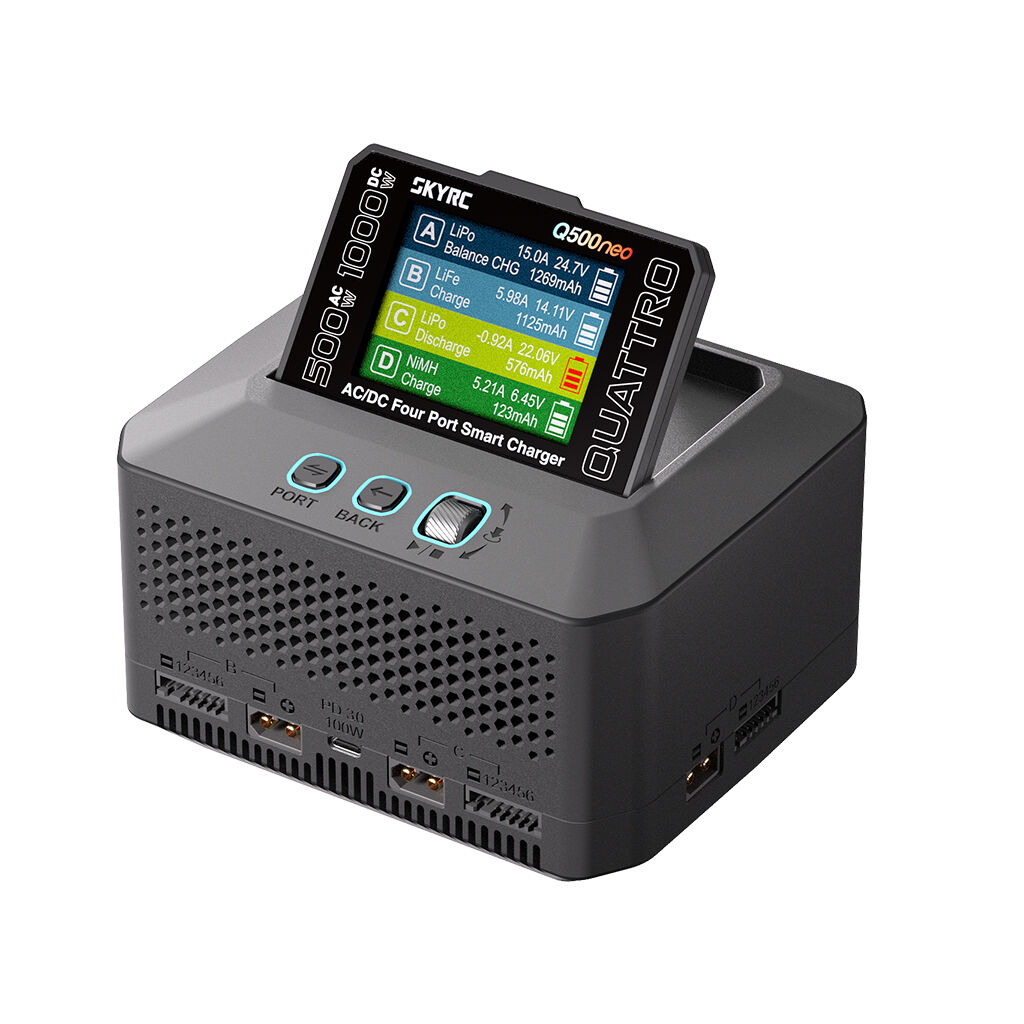

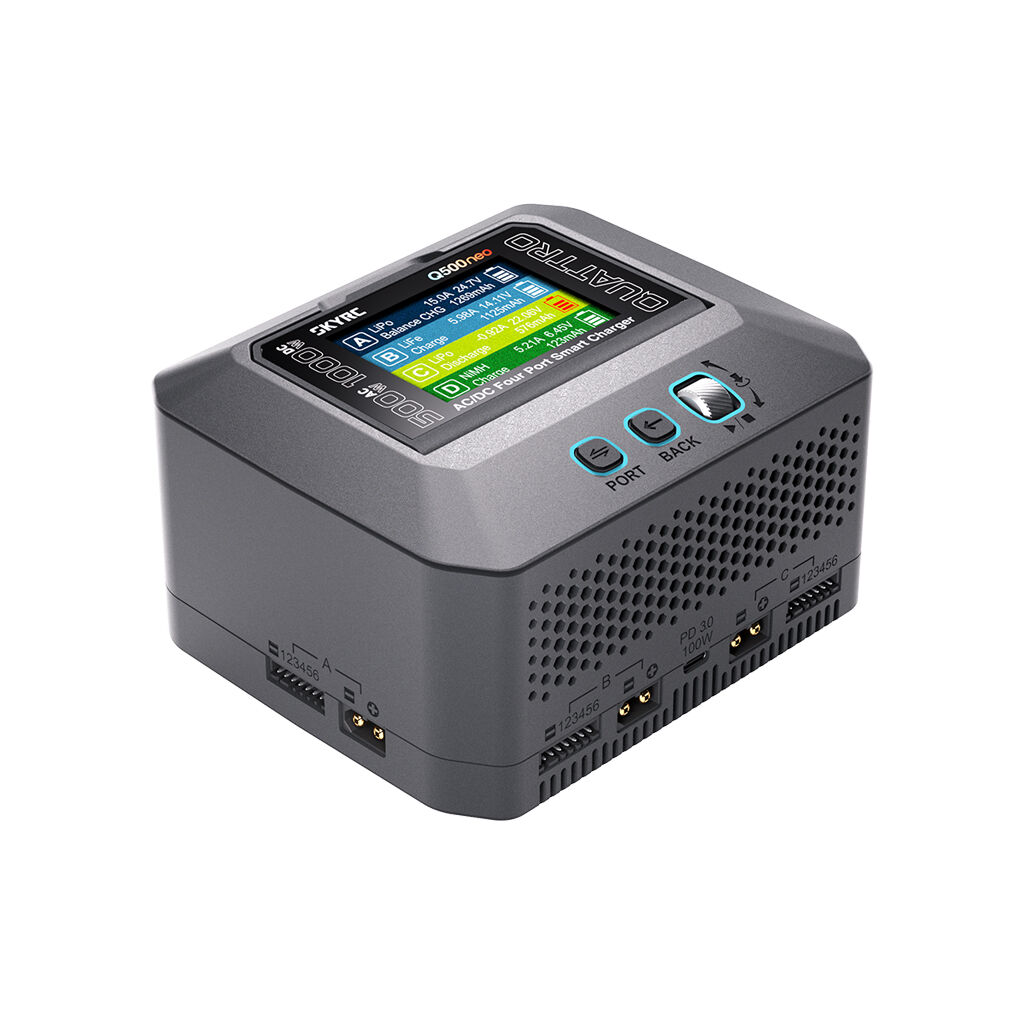

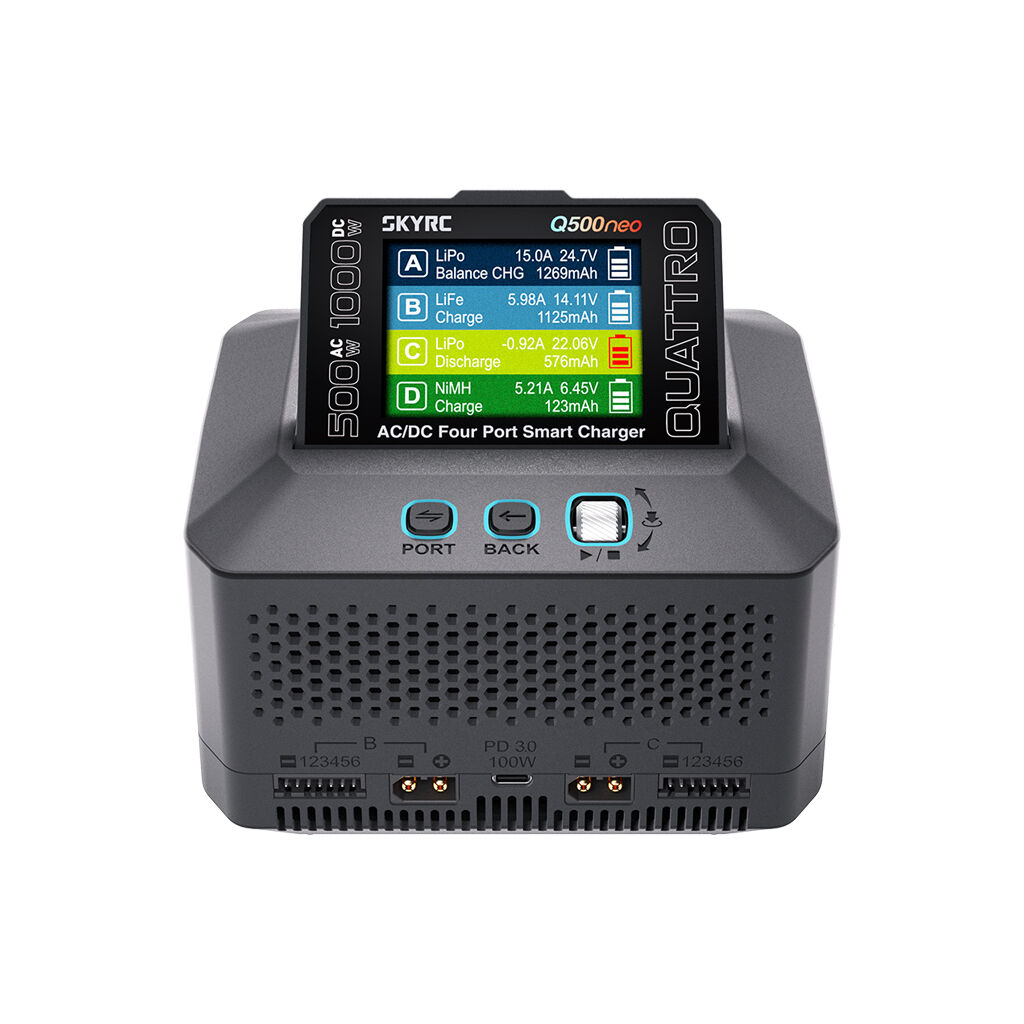

SKY RC Q500neo AC/DC Charger

Four independent output ports allow simultaneous charging of multiple batteries.  From drone soccer to FPV and track racing, reduce downtime and stay ready to run.  1.5A balancing current and ±0.01V precision ensures stable performance.
Control, without effort.

Highlights at a Glance

- Dual AC/DC Input
- 500W Charging on AC
- 1000W Charging on DC
- Four Independent Ports
- Up to 25A per Port
- Smart Power Distribution
- Arm Cortex-M33 Control Core
- Digital Power Supply Mode
- Intelligent Fan Control
- HyperBoost Algorithm
- PD 3.0 @ 100W
- Intuitive User Interface
- Flip Display
- Multi-Language
- Colour X Display

25A per Port.Fast, Stable.
Each port supports up to 25A of charging current, making it suitable for more demanding battery setups.
It works well with both high-capacity batteries and higher-load applications, while maintaining stable and efficient performance.

Speed and stability, combined!
Dual AC/DC Input. Flexible for Every Setup.
Supports AC and DC input for easy switching across different scenarios.
Delivers stable, reliable performance—whether for everyday use or high-load applications, indoors or at the track.

Outsized Performance
Compact in size, powerful in delivery.
Behind its performance is a high-performance Arm® Cortex®-M 32-bit processing core, keeping charging control precise, responsive, and stable—even during high-power operation.
Serious power, packed into a compact footprint.

Multiplied by Proprietary HyperBoost
Thanks to the 200 MHz ARM Microcontroller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.

Do More With One Charger! Multiple Chemistries Go.
With exceptional versatility, Q500neo can charge a wide range of battery chemistries. This powerhouse can charge everything from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd.
Unlock the full potential of your battery arsenal with Q500neo– versatility multiplied capability.

Reverse Discharge Power on the go. Smarter. Greener.
Discharge your battery at up to 500W—and put that energy to work.
Exclusively between ports A and B, Q500neo transfers unused energy from one battery to another, maximizing efficiency and reducing waste.
Whether at the track, in the pit, or on the move, RC enthusiasts now have a cleaner, smarter, and more flexible way to stay powered up.
A small shift—with a big impact on how you manage energy.

So. Pro. So is Digital Power
Q500neo excels not only in charging, but also as a versatile quad output digital power supply.
With just a few clicks on the menu, Q500neo offers a voltage option, from 1.0V to 30.0V, with an adjustable increment of 0.1V. Additionally, the current can be adjusted from 0.1A to 25.0A, with a precision of 0.1A.
This Dual output digital DC power supply provides two independently controllable power outputs, making it a versatile tool for various RC testing and prototyping applications.

PD 3.0 @ 100W Power Anywhere. Anytime.
From powering RC gear to extending playtime on Nintendo Switch, to charging the latest MacBook Pro, and everything in between, including phones, tablets, and earbuds.
Q500neo doubles as your ultimate 100W PD charger, built to keep up with every moving need.

Specifications

Size and Weight

Case Size: 146x123x88mm
Weight: Approx.1206g
Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240x320 Pixel
Number of Colors: 262K
Power
AC: 100V~240V（50/60Hz）
Input：9-36V

Charge Power:
AC: 500W
DC：1000W

Discharge Power:
Main Port: 10W
Balance Port: 24W Max
Battery Types/Cells:
LiPo/LiFe/Li-ion/LiHV: 1-6S
NiMH/NiCd: 1-15S
Pb: 3S/6S/12S
Charge and Discharge
Charge Current
LiPo/LiFe/Li-ion/LiHV:
A/D Port:
0.1A~0.5A（±0.1A）
0.6A~15A（±10%）

B/C Port:
0.1A~0.5A（±0.1A）
0.6A~25A（±10%）

NiMH/NiCd:
0.1A~0.5A（±0.1A） 0.6A~10A（±10%）

Pb:
0.1A~0.5A（±0.1A） 0.6A~15A（±10%）

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1A ~ 2.0A

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)
