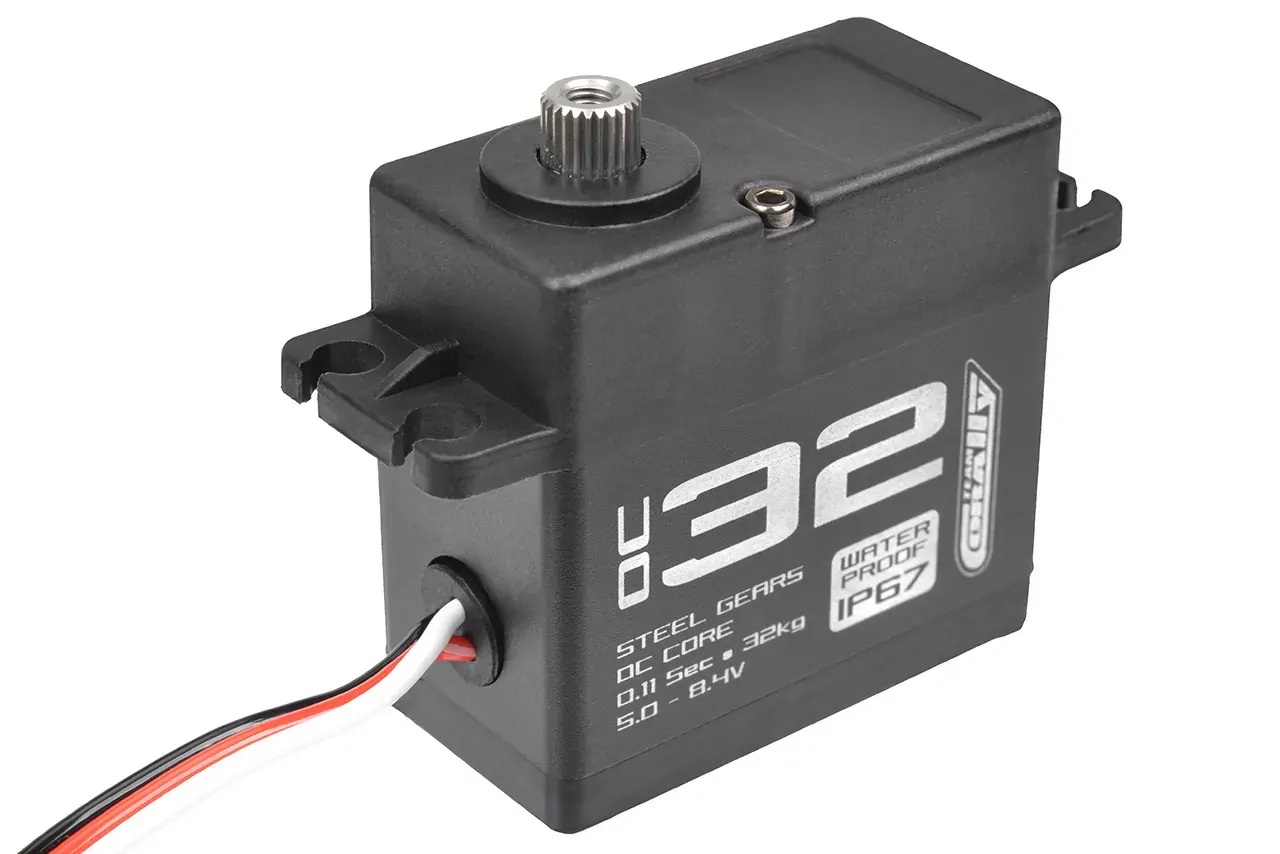

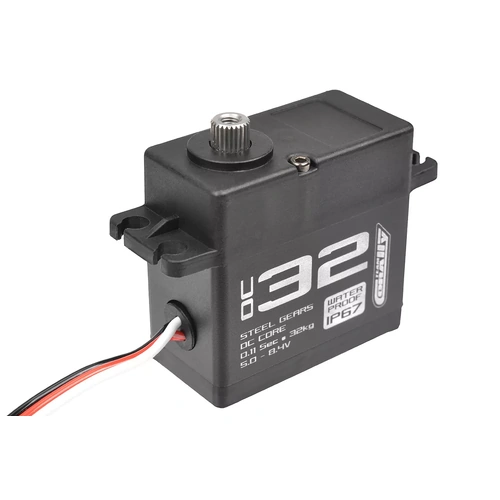

Team Corally - Digital Servo - OC 32 - High Voltage - Metal Gear – 32 Kg Torque

Servo - Specs

Speed 60°/Sec @ 6.0V - 0.14

Speed 60°/Sec @ 7.4V - 0.13

Speed 60°/Sec @ 8.4V - 0.11

Torque kg/cm @ 6.0V - 24,2

Torque kg/cm @ 7.4V - 27,8

Torque kg/cm @ 8.4V - 32

Quiescent Current (mA)



Rated Current (mA)

800

Blocking Current (mA)



Servo - Dimensions

Servo Type Standard Servo

Spline Type 25T Spline

Length (mm) 40

Width (mm) 20,2

Height (mm) 37,8

Weight (g) 55

Servo - Technology

Technology Digital HV

Operating Voltage (V) 6.0V - 8.4V

Servo Motor DC Core Motor

Servo Protection Water - Dust Resistant

Servo Positioning VR Potentiometer - Direct Drive

Servo Gears Metal Gears

Servo Case Aluminium + Composite Case

Connector JR Universal + Colored Lead
