EzRun MAX6 G2 200A 3-8S WP ESC 1/6

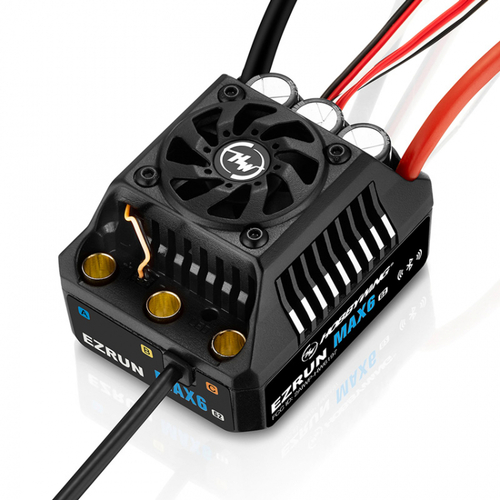

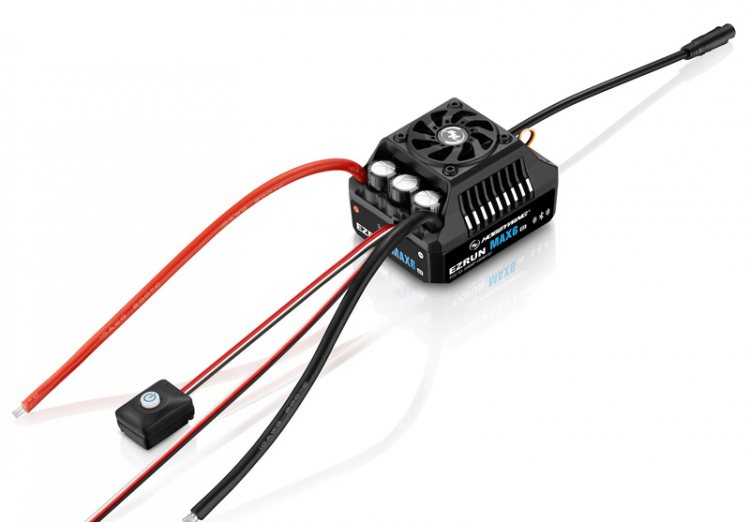

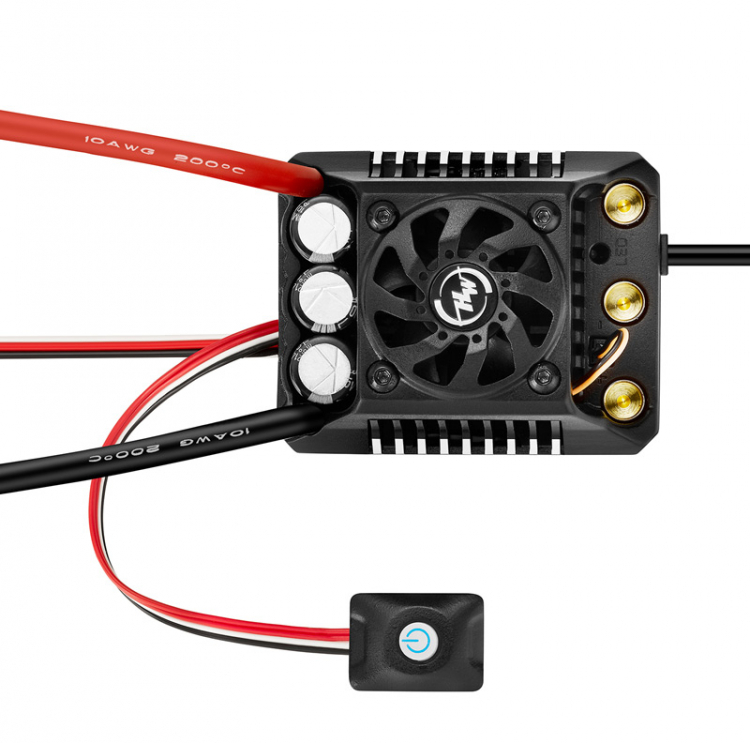

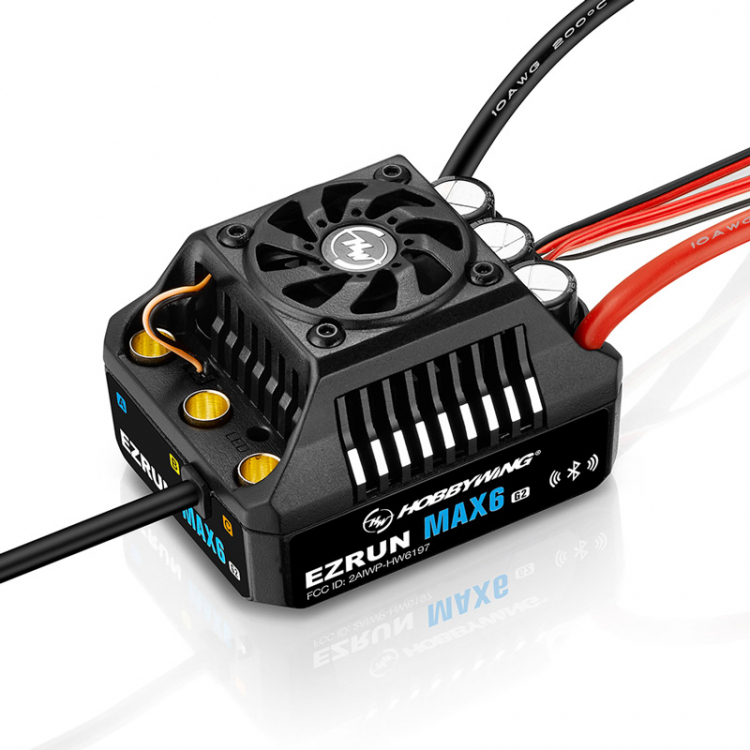

Hobbywing EzRun MAX6 G2 ESC

From the inside out - Fully upgraded

Sensored 8S ESC, Fully upgraded performance
The Max6 G2 features Hobbywings new water proof sensor system, and also supports sensorless operation. Rated at up to 200 amps the Max6 G2 is ready to take on your high powered 8s builds. Powerful, smooth, with linear control through the entire RPM range. The ESC is suited for everything from hard starts, high speed runs, and low speed response that is unmatched.

Features:

• The esc has an innovative waterproof sensor interface, enhancing the overall waterproof and dust-proof performance. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation.
• Built-in ultra-powerful switch mode BEC with a continuous current of 8A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
• Supports turbo timing setting, the timing response is remarkable when used with the matching motor(such as EZRUN 4990SD/5690SD G2).
• Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
• The built-in (integrated in the switch) Bluetooth function allows for setting and upgrading the esc by directly connecting to the mobile app, without any additional devices, making it simpler and more convenient.
• Data logging function to view various running data on the HW LINK app.
• Supports the firmware upgrade of the ESC, you can enjoy the latest functions

Intelligent freewheeling technology, strong drive, low temperatures

• Higher driving efficiency
• Lower operating temperature
• Ultra dynamic design

The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency. At the same time, operating temperature is drastically lowered to improve overall stability and reliability of the ESC.
Remarks: Under heavy load conditions, the temperature of MAX6 G2 is comparable to that of MAX5 generation

Built-in Bluetooth, connect directly to mobile APP
The ESC has a built-in Bluetooth module. It is able to connect directly to the mobile phone APP without other devices for parameter setting, data reading, firmware upgrade and other operations. User friendly ESC made simpler and convenient for users.
Remarks: The data includes throttle, voltage, current, temperature, rpm, etc.

Build in Data Recording with Graph
The Max6 G2 has built in data recording and can record up to 10 minutes of Data. Using the HW Link V2 app, you will be able to review the saved data and review the runs complete with data Graph.
Note: Due to transmission distance of bluetooth, the effective distance is approximately 5m!

Intelligent fan start-stop function
The Max 6 G2 features a smart fan circuit that only runs the fan when needed. The fan will remain "off" unless the ESC temperature requires air flow.

Applicable to All Weather Conditions
The IP-67 waterproof rating guarantees excellent waterproof and dust-proof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

The overall protection level of the motor reaches IP67:

• Splash-proof
• Water-proof
• Dust-proof

Remarks: The IP67 protection level mentioned above is splash-proof, waterproof, and dust-proof under normal usage. However, it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

1/6 scale power system Turbo timing technology
The ESC is able to support up to24degrees ofTurboTiming adjustment. There is an approximate of 20% increase in performance and is recommended to pair with the new HOBBYWING EzRun 4990/5690 G2 motors to get the best performance.
Note: For non-Hobbywing EZRUN 4990/5690 G2 motors, Turbo timing cannot be turned on.

Powerful BEC
The ESC has a built-in super BEC with a maximum output current of up to 25A.The output voltages are switchable between 6V/7.4V/8.4V.This ensures that the ESC is able to support the demanding high-torque servos in the market.

Built-in anti-spark design
The ESC has a built-in anti-spark circuit to protect the battery plug from damaging upon using a higher voltage battery (6-8S) and avoids any injuries.

Perfect combination with EzRun 4990/5690 G2 motor
Achieve the perfect compatibility using it together with EzRun 4990/5690 G2 motors. Avoid damaging the motor from overheating with the software protection function.
Note: Non-Hobbywing EZRUN 4990/5690 G2 motors is unable to detect motor overheat protection.

Specs:

• Type: 1/7-1/6 scale, Brushless, Sensored IP67 ESC
• Cont./Peak Current: 200A/1200A
• Input Voltage: 3-8S Lipo
• BEC Output: Switch-mode 6V/7.4V/8.4V @8A
• Input Wires: 10AWG-200MM
• Input Connectors: No
• Output connectors: 6.5mm Connectors (Female)
• Size: 70x56x45.5mm
• Weight: 245g
• Fan Size: 35x35x10mm
• Fan Input voltage: 5-8.4V
• Fan Input Connector: Powered by BEC

ESC Programing via:

• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD G2 Program Box: Not Supported
• OTA Programmer: Not Supported
• Program Port: Built-in Bluetooth
• Firmware Upgrade: Supported

Data Recording:

• Extreme value: Supported
• Real-time Data: Supported
• Historical data (Graph): Supported

Applications:

• Motors: EzRun 4990SD/5690SD G2
• Vehicles: 1/6 & 1/7 On-road, Trucks, Monster Trucks
• Vehicle examples: Losi 1/6 Super Baja Rey, Traxxas XRT, Traxxas X-MAXX, ARRMA 1/7 Limitless, ARRMA 1/7 Fireteam, ARRMA 1/7 Mojave, Cen 1/7 Reeper, HPI Baja 5B
