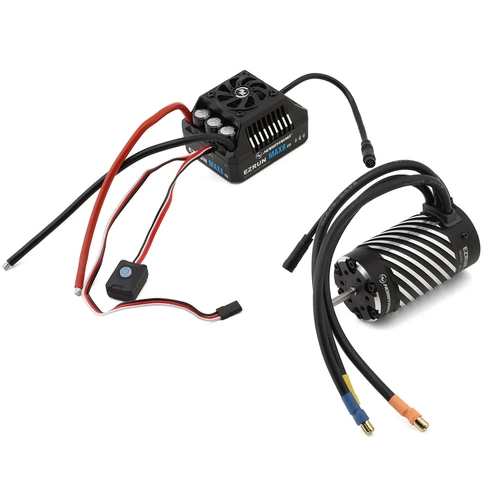

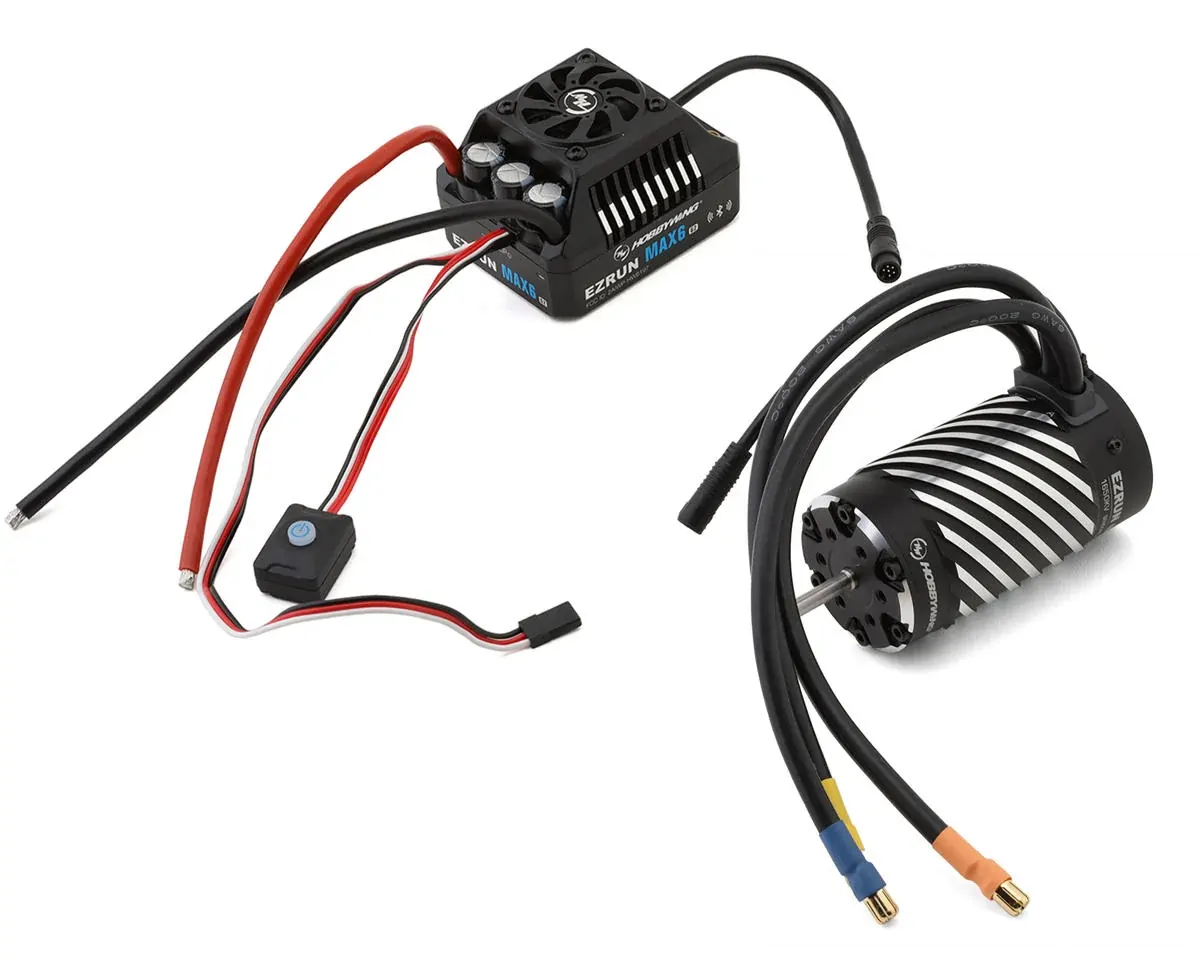

EZRun MAX6 G2 Sensored Brushless ESC & Motor Combo w/4990SD G2 (1650kV)

Combo Overview:

The Hobbywing EZRun MAX6 G2 ESC is built with the most rugged and high-quality components, featuring cutting-edge firmware for unmatched power and performance, making it ideal for hardcore bashing applications. This ESC is designed to handle extreme power demands while offering responsive protection against damage due to overloading, overuse, or human error.

With remarkable acceleration capabilities and stable output, the MAX6 can deliver instant full-torque start-ups, high-speed racing on straightaways, and the ability to power through rough terrain. Users have the flexibility to adjust ESC parameters to suit their preferences and skills.

The ESC boasts an innovative all-weather conditions waterproof sensor interface design, enhancing its overall waterproof and dustproof performance. It includes a built-in ultra-powerful switch mode BEC with a continuous current of 8A, instant 25A, and support for 6V/7.4V/8.4V. The MAX6 also supports turbo timing settings and offers multiple protection functions including an intelligent automatic fan start-stop function.

Additional features of this ESC include high voltage built-in BEC, a graph data logging function that allows users to view various running data on the HW LINK app, an advanced and secure electronic switch, and a built-in anti-spark system for added safety. The Hobbywing EZRun MAX6 G2 ESC is designed for 1/6 and 1/7 scale touring cars, buggies, truggies, and trucks, making it a versatile and powerful choice!

Features:

• ESC
  • Built with the most rugged and high-quality components
  • Unmatched power and performance for racing applications
  • Responsive protection against overloading and damage
  • Incredible acceleration and stable output
  • Innovative all-weather conditions waterproof sensor interface
  • Ultra-powerful switch mode BEC with 8A continuous current
  • Supports turbo timing settings
  • Multiple protection functions including an intelligent automatic fan start-stop function
  • Data logging function for monitoring running data
  • Built-in wireless module
• Motor
  • IP-67 Water and elements proof design
  • 4-Pole rotor design for more torque with strong explosive force
  • Sensored interface
  • Precision CNC-machined shell

Specifications:

• ESC:
  • Type: Sensored Brushless
  • Application: 1/6 & 1/7 Scale Touring Car, Buggy, Truggy, and Truck
  • Input Voltage: 3-8S LiPo Battery
  • Continuous Current: 200A
  • Peak Current: 1200A
  • BEC Output: Switchable (6.0V-8.4V)
  • Length: 70mm
  • Width: 56mm
  • Height: 45.5mm
  • Weight: 245g
  • Motor Limit: (6S) 2400kV - (8S) 1700kV
• Motor:
  • kV Rating: 1650kV
  • Type: Sensored Brushless
  • Applications: 1/7 & 1/8 Scale Touring Cars, Buggies, Truggies, and Trucks
  • Input Voltage: 3-8S LiPo
  • No Load Current: 7A
  • Poles: 4
  • Diameter/Length: 49mm (1.93") / 90mm (3.45")(
  • Shaft Diameter/Length: 5mm (0.20") / 21.5mm (0.85")
  • Front Bearing: 19x8x6mm
  • Rear Bearing: 19x8x6mm
  • Weight: 701g

Includes:

• (1) EzRun MAX6 G2 ESC
• (1) EzRun 4990 SD Brushless Motor (1650kV)
• (1) Hobbywing decal sheet
• User's manual
