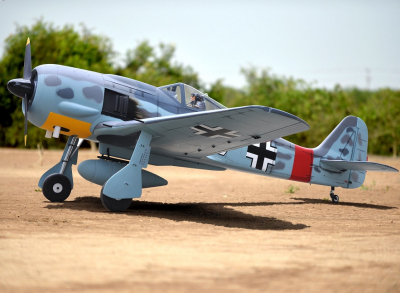

Focke Wulf FW190 120cc (including Electrict Retract ) (covered with HEAT-SHRINK FILM WITH PRINTED)

SPECIFICATION:

-  Wingspan: 2,600mm (102.4in).

-  Length: 2,230mm (87.8in).

-  Weight: 15kg (33lbs).

-  Wing area: 117 dm2.

-  Wing loading: 128.2 g/dm2.

-  Wing type: Naca Airfoil.

-  Servo mount: 42mm x 21mm.

-  Gear type: Air retract gear with oleo strutsfor main gear

and air retract gear with oleo struts for tail gear (included).

Parts listing required (not included):

-  Radio: 07 channels.

-  Servo: 9 standard high torque servos.

-  Engine:120 cc gas.

-  Motor: Brushless outrunner 185 KV.

-  Propeller motor: 28x 10.

-  Propeller engine: 27 x 10.

Recommended motorand battery set up (not included):

- Electric Motor: BOOST 180.

- Battery: 12S LIPO 44,4V 6,000mAh.
- Speed control: 120A. HV.

-  Receiver battery: 6.0V 2400-2600mAh(2 Packs).

-  Torque servos: 11.3kg/cm – 12.9kg/cm.

INCLUDED AIR RETRACT LANDING GEAR.
WITH OLEO STRUTS.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.

SHIPPING;

23KG

180x68x53cm
