Product information "SkyRC Omni XT90 Power Distribution Hub"

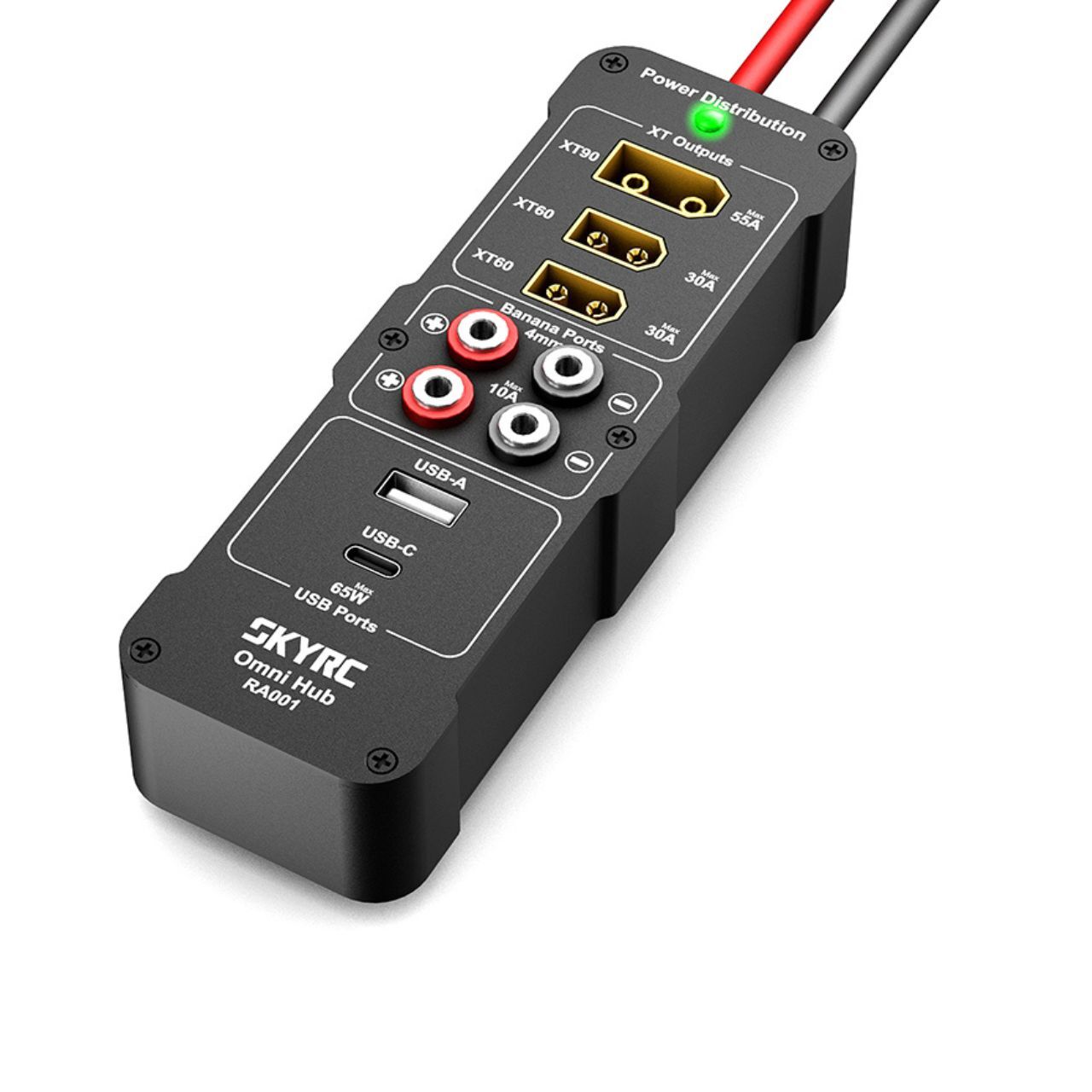

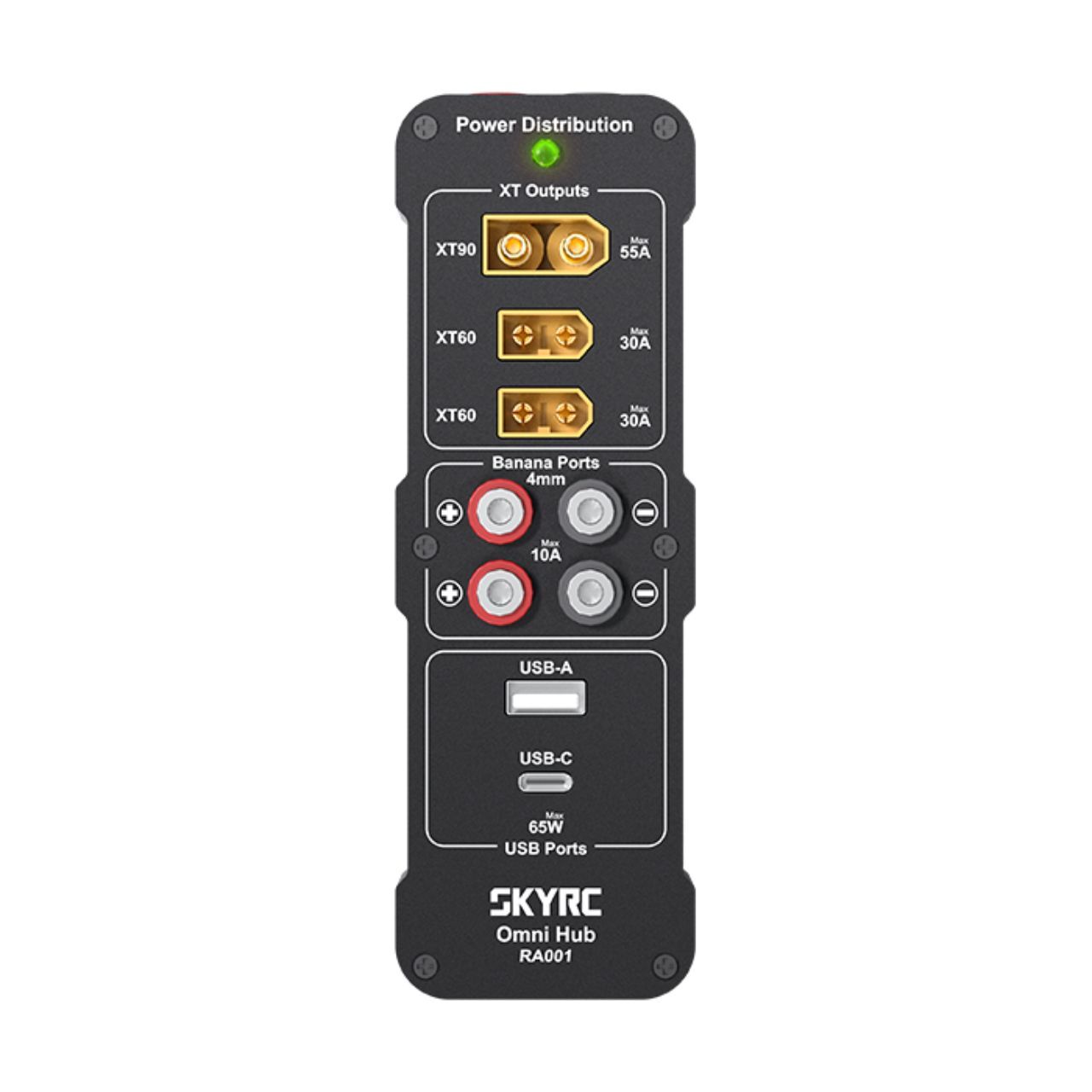

The SkyRC Omni XT90 Power Distribution Hub is the ideal power distribution solution. With its XT90 input and a maximum continuous power output of up to 2000 W, the Omni Hub powers multiple chargers, batteries and devices simultaneously – clean, efficient and through a single, compact setup. Thanks to its practical power-strip design, the hub is equally at home on the workbench or on the go in a backpack. In addition to the high-current outputs (XT90, XT60, 4mm banana sockets), the hub also features a USB-C fast charging output with up to 65 W as well as a USB-A output.

Multiple built-in protection mechanisms ensure safe and stable power delivery at all times.

Specifications:

Input Voltage:	8-36V
Max. Input Current:	55A
USB-C Output:	5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A – max. 65W
USB-A Output:	5V/3A, 9V/2A, 12V/1.5A – max. 18W
USB-C + USB-A simultaneous:	5V/3.6A – max. 18W
XT90-F Output:	max. 55A
XT60-F Outputs:	max. 30A
4mm Banana Sockets:	max. 10A
LED Indicator:	Green (operating) / Off (standby)
Dimensions:	151 x 50 x 29.5mm
Weight:	310g

Note:

*The maximum output power of 2000W is achieved in combination with the SkyRC eFUEL PSU2000 power supply (AC 220-240V version, max. 1980W). The eFUEL PSU2000 is not included.

Package Contents:

1x Omni XT90 Power Distribution Hub
1x Manual

(SK-600163-01)
