SKYWALKER-20A-4S-V2-MINI

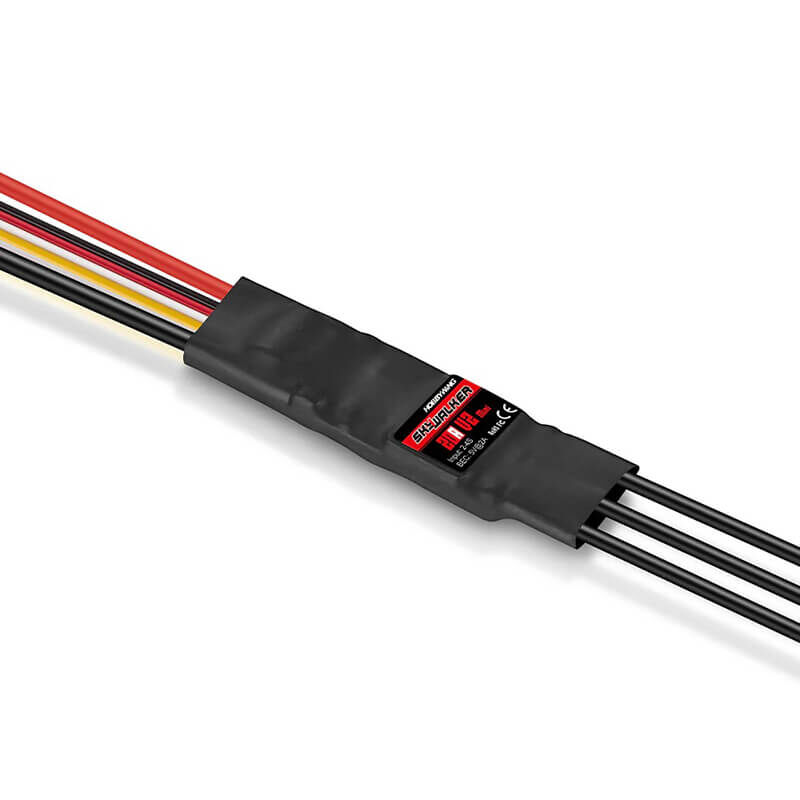

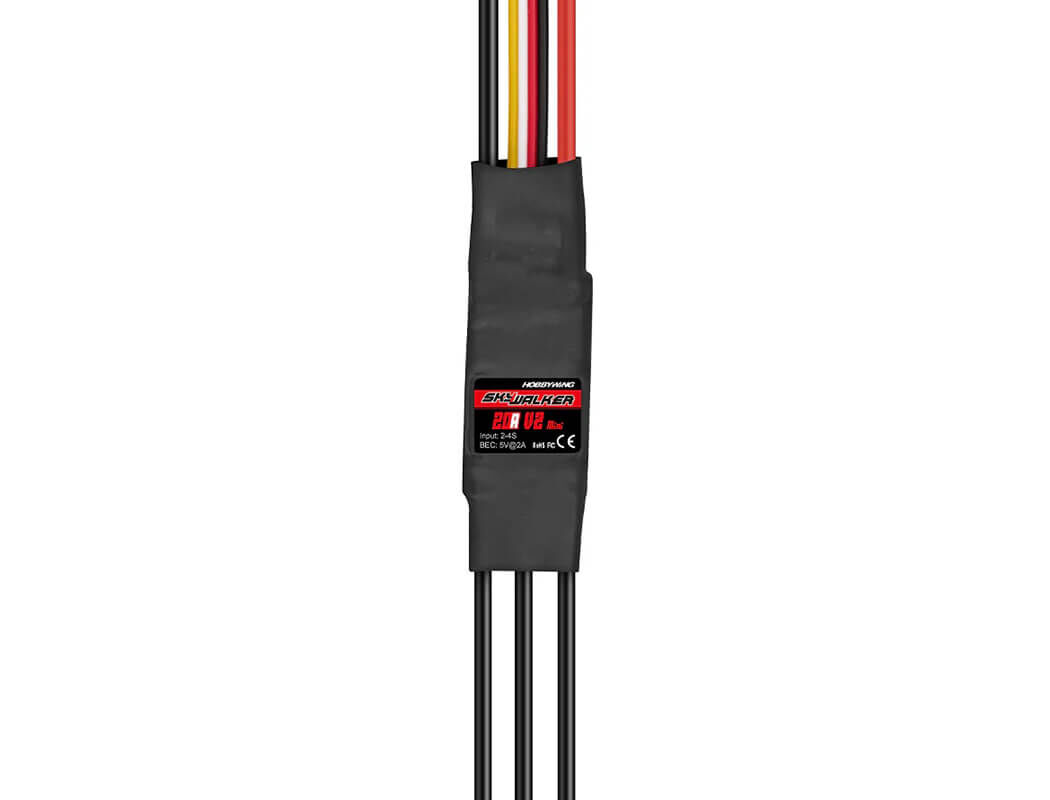

HOBBYWING SKYWALKER 20A 4S V2 MINI SPEED CONTROL

Features

• High performance 32-bit microprocessor (Running frequency up to 96MHz) has excellent compatibility with various types of motors.
• DEO (Driving Efficiency Optimisation) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
• Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere.
• Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.
• Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.
• Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.

Specifications

Brushed/Brushless: Brushless
High Voltage/Regular: Regular
Cont./Peak Current: 20A/40A
Input: 2-4S LiPo
BEC Output: Switch Mode:5V,2A
Input Wires: Red-18AWG-150mm*1, Black-18AWG-150mm*1
Output Wires: Black-18AWG-100mm*3
Input Connectors: No
Output Connectors: 2.0Gold Connectors (Female)
ESC Programing via:
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire
Firmware Upgrade: Not Supported
Size: 34x15x10mm
Weight: 15g
