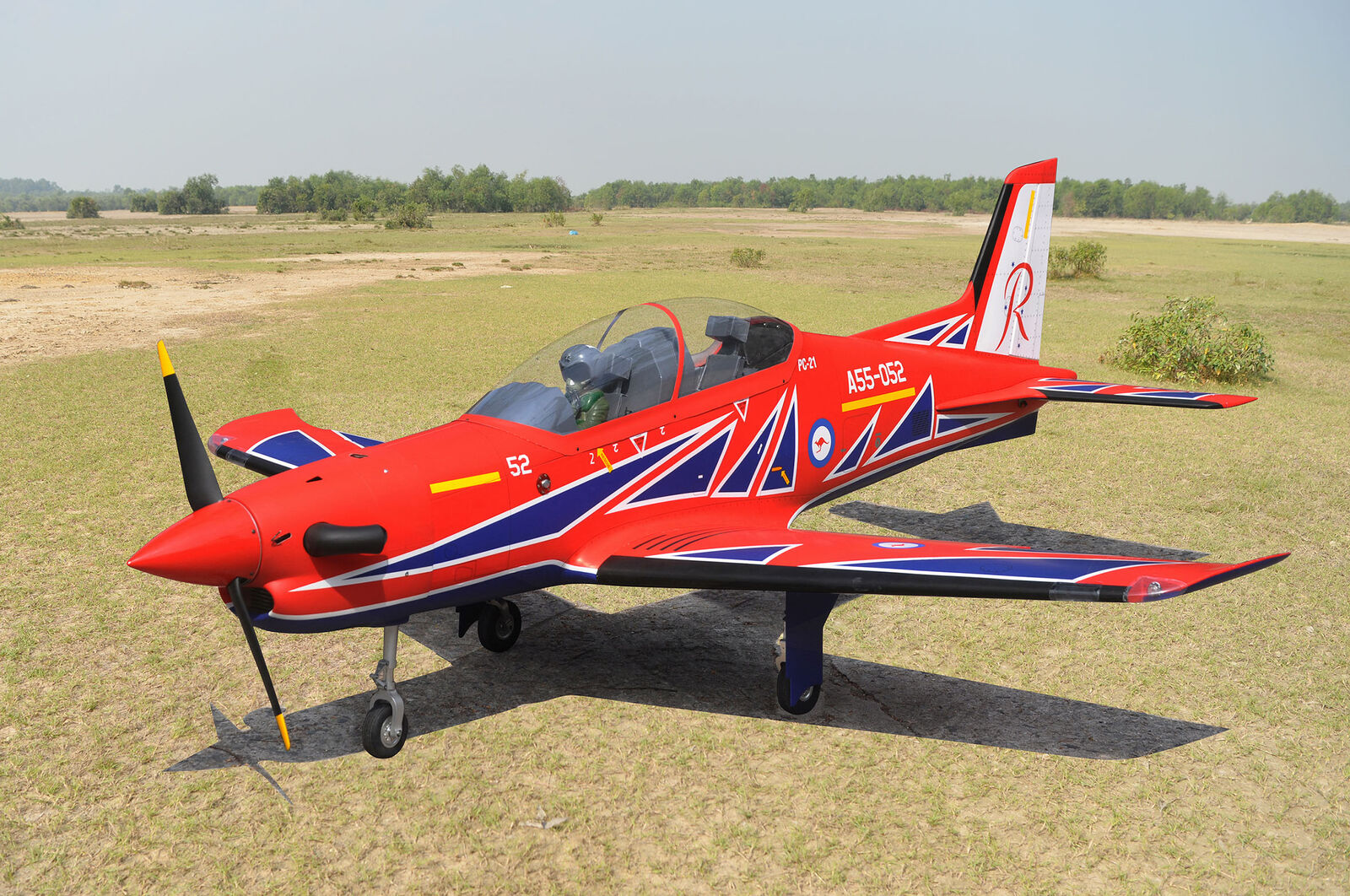

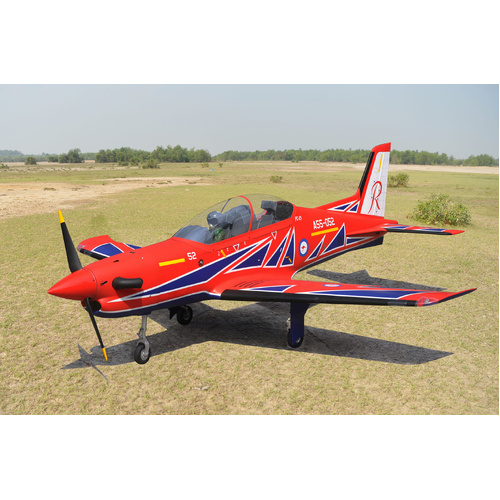

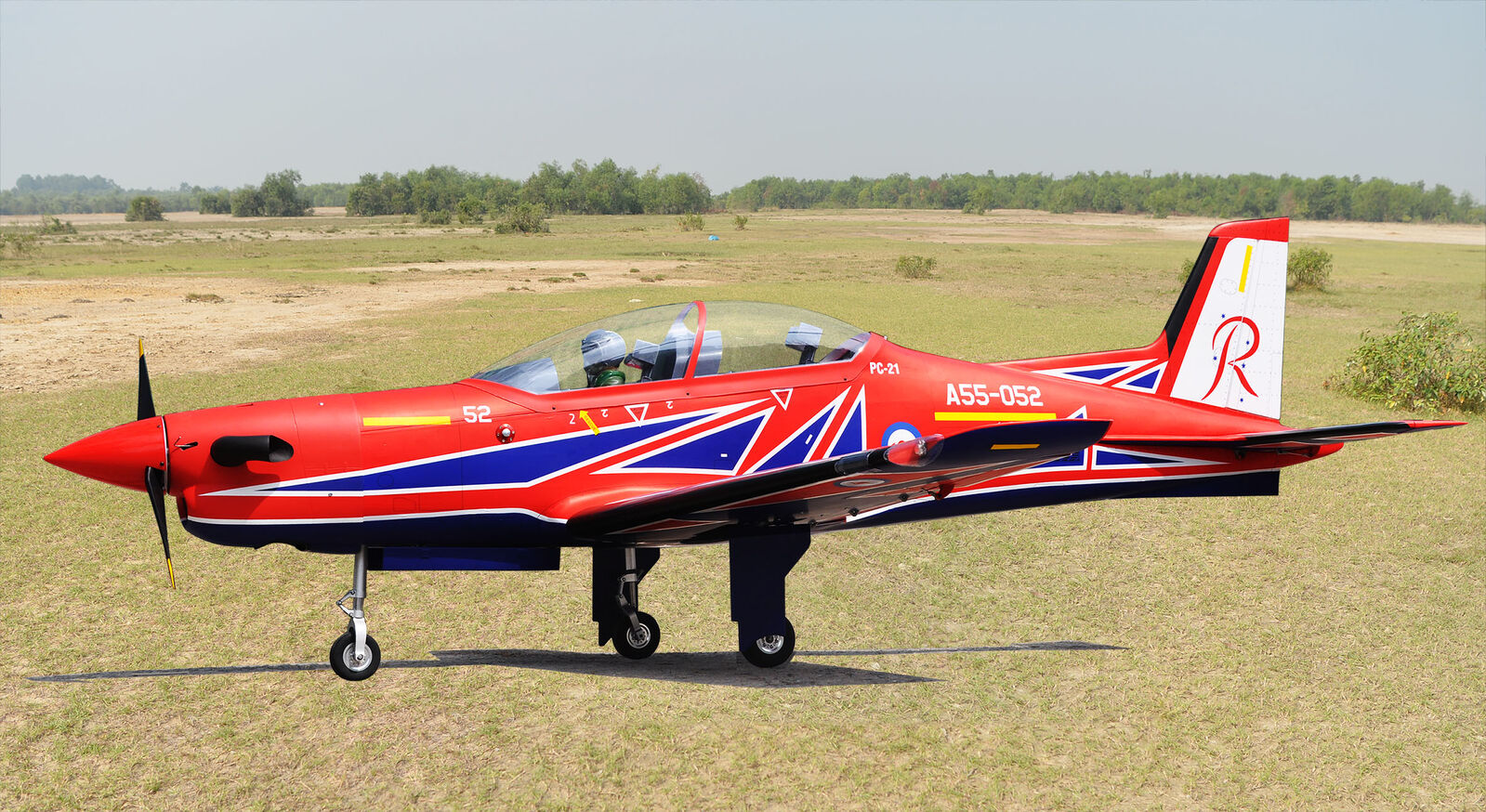

PC-21 PILATUS Wingspan: 1,962 mm

Item code: BH192
Glow and EP

SPECIFICATION:

• Wingspan: 1,962 mm (77.24 in).
• Length: 2,312mm (91.02 in).
• Weight: 11 kg (24.25lbs)
• Wing area: 71.8 dm².
• Wing loading: 153g/dm².
• Wing type: Naca Airfoil.
• Spinner: 115mm
• Servo mount: 42mm x 21mm.
• Main gear type: Electric retract gear with oleo struts (included).
• Nose gear type: Electric retract gear with oleo struts (included).

Parts listing required (not included):

• Radio: 07 channels minimum.
• Servo: 9 standard high torque servos.
• Engine: 55-65 cc gas.

–  Motor: Brushless outrunner 5000 –  6500W, 180KV.

–  Propeller: Suit with your engine.

Recommended motor and battery set up (not included):

• Motor: Admiral GP60 8925-180KV Brushless.
  Lipo cell: 12 cells 5500 – 6000mAh.
• Receiver battery: 6.0V-7.4V, 2600-3200mAh (3 Packs).
• ESC: 120A.

ALL BALSA – PLY WOOD CONSTRUCTION.
