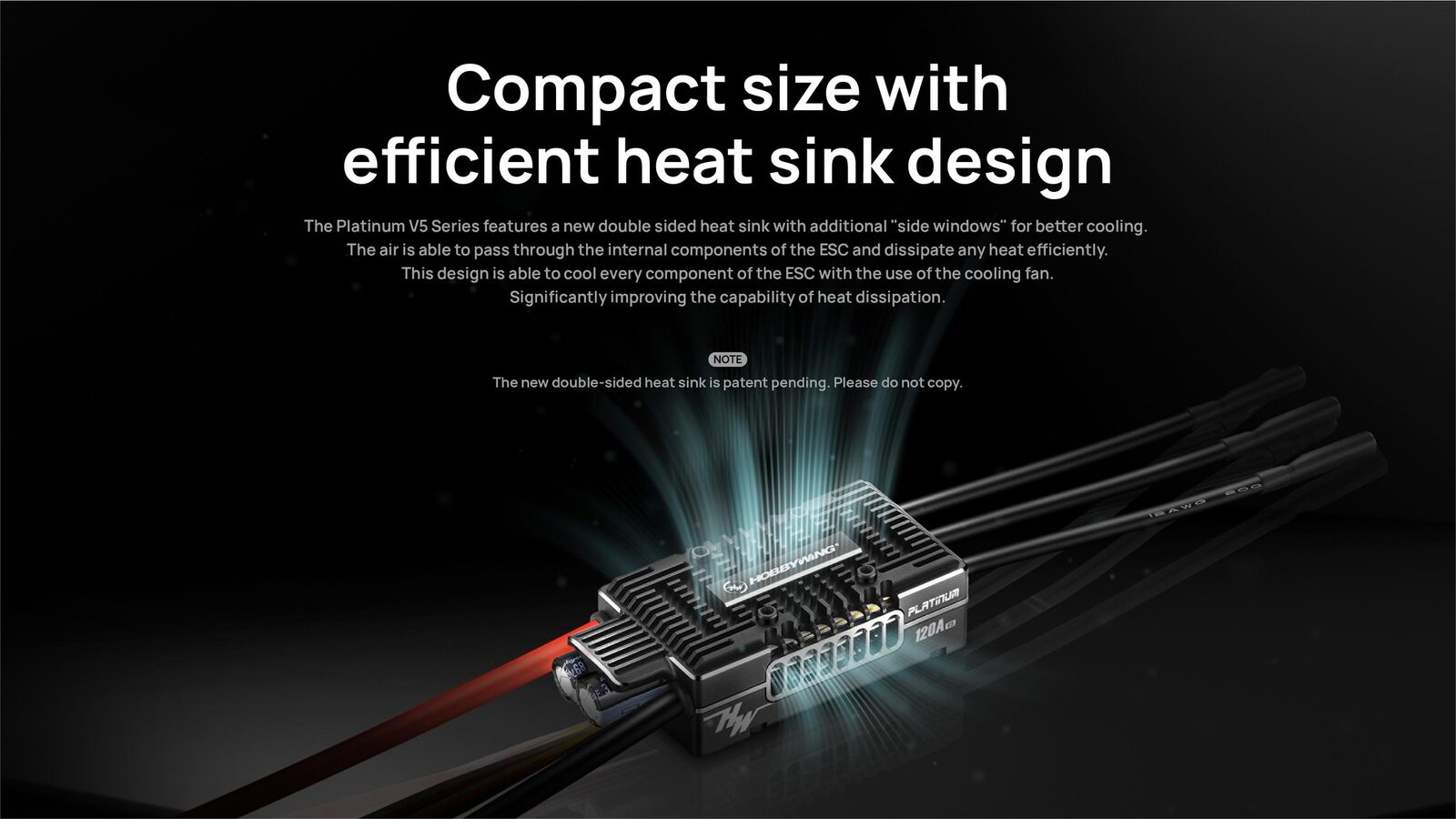

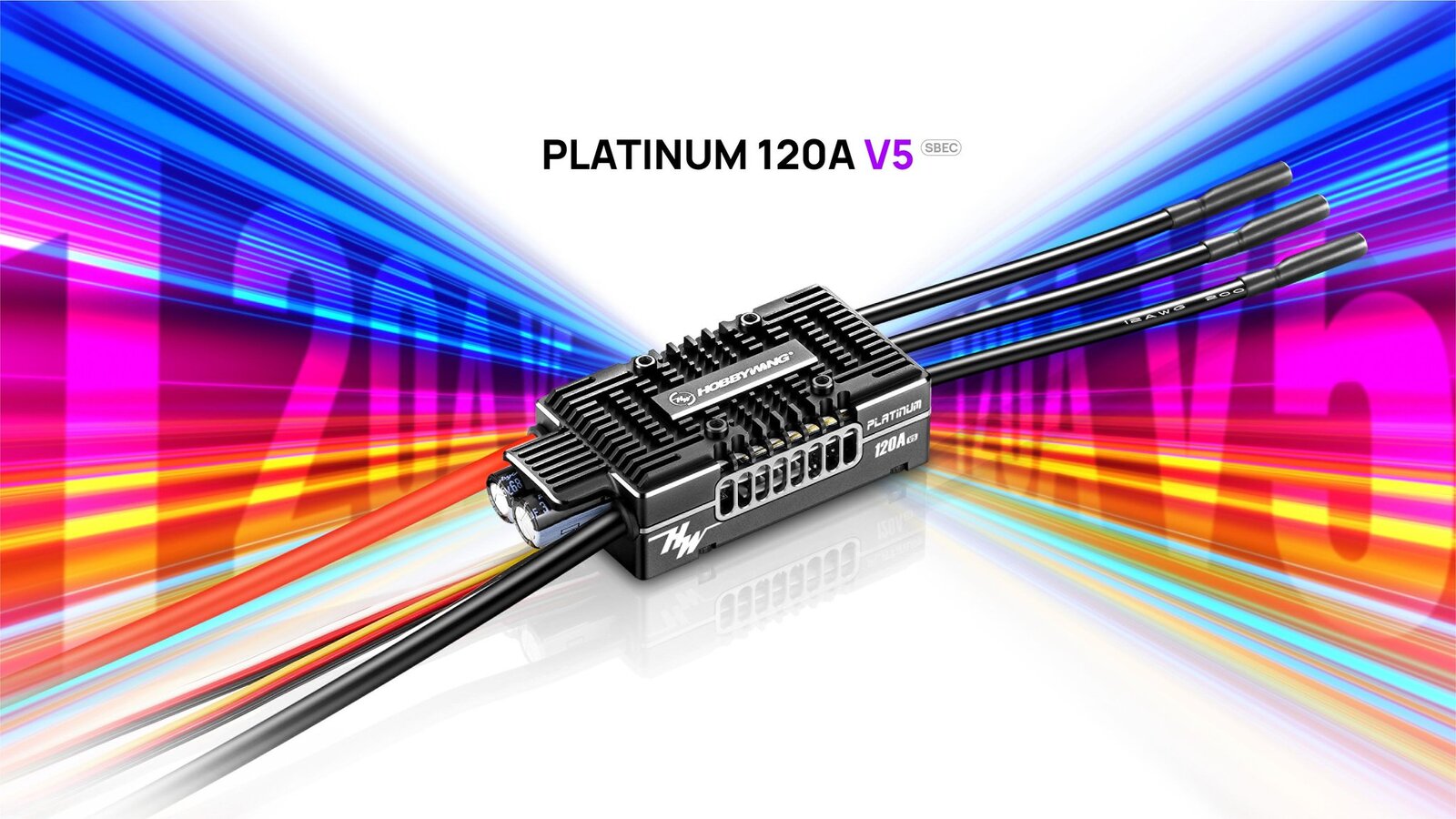

Platinum 120A V5

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS & OVER LENGTH ITEMS )
Free pick-up from store - $0.00
Warehouse pick available

Product Name

  Platinum 120A V5

Product Number

  30203402

Type

Brushed/Brushless BL
High Voltage/Regular Regular

Specifications

Cont./Peak Current 120A/150A
Input Voltage 3-8S Lipo
BEC Output Switch Mode:5-12V & Cont. 10A,Peak 30A

Wires & Connectors

Input Wires Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires Black-12AWG-100mm*3
Input Connectors No
Output Connecotors 4.0mm Gold Connectors (Female)

ESC Programing via

Transmitter Not Support
LED Program Card Not Support
LED Program Box Not Support
LCD Program Box Supported
OTA Programmer Supported
Program Port Separate Program Port

Firmware

Firmware Upgrade Supported

Telemetry Function

  Mikado VBar;Futaba S.Bus2;etc.

Size & Weight

Size 83.2*37.1*22.5mm(without fan)
Weight 150.4g(with wires, no fan)

Application scope

  420-520 class electric helicopter (main blade length 420-520mm),or fixed-wing

(HW30203402)

SKU HW30203402
Brand HOBBYWING
