XERUN XR8 Plus G2S

Specifications

Product Name XeRun XR8 Plus G2S

Product Number 30113304

Type Scale 1/8^th

Brushed/Brushless BL

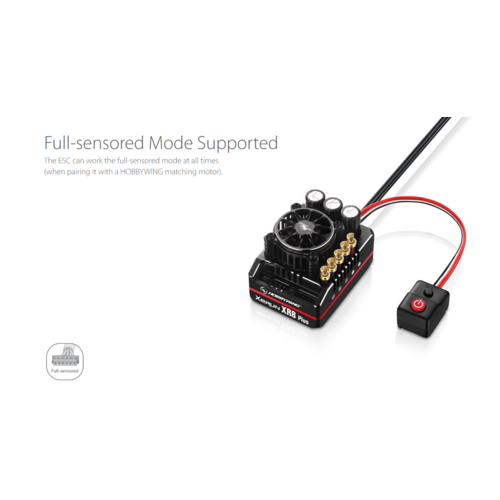

Sensored/Sensorless SD

Waterproof No

Specifications

Cont./Peak Current

200A/1080A

Input Voltage 2-6S Lipo

BEC Output 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode)

Wires & Connectors Black-11AWG-200mm*2

Output Wires Black-11AWG-200mm*3

Input Connectors No

Output Connectors No

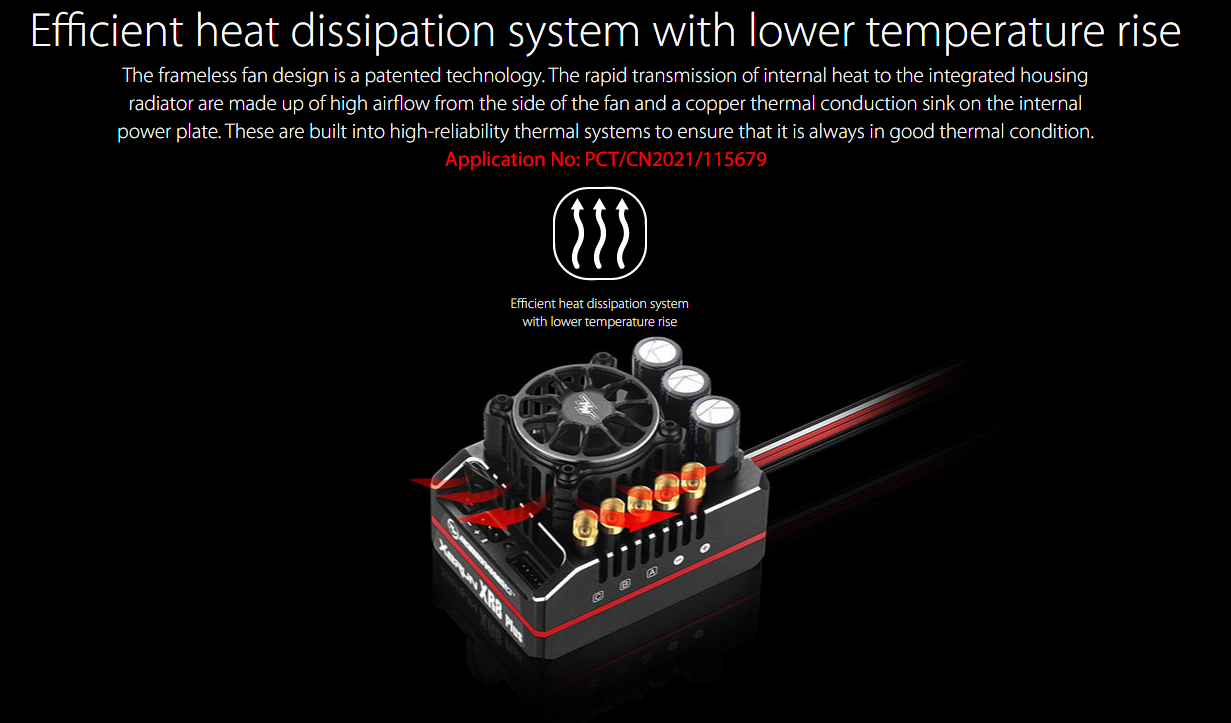

Fan Size 30x30x10mm

Voltage Range 5-8.4V

Powered by Powered by BEC

ESC Programing via SET Button on ESC Not Supported

LED Program Box Not Supported

LCD Program Box Supported

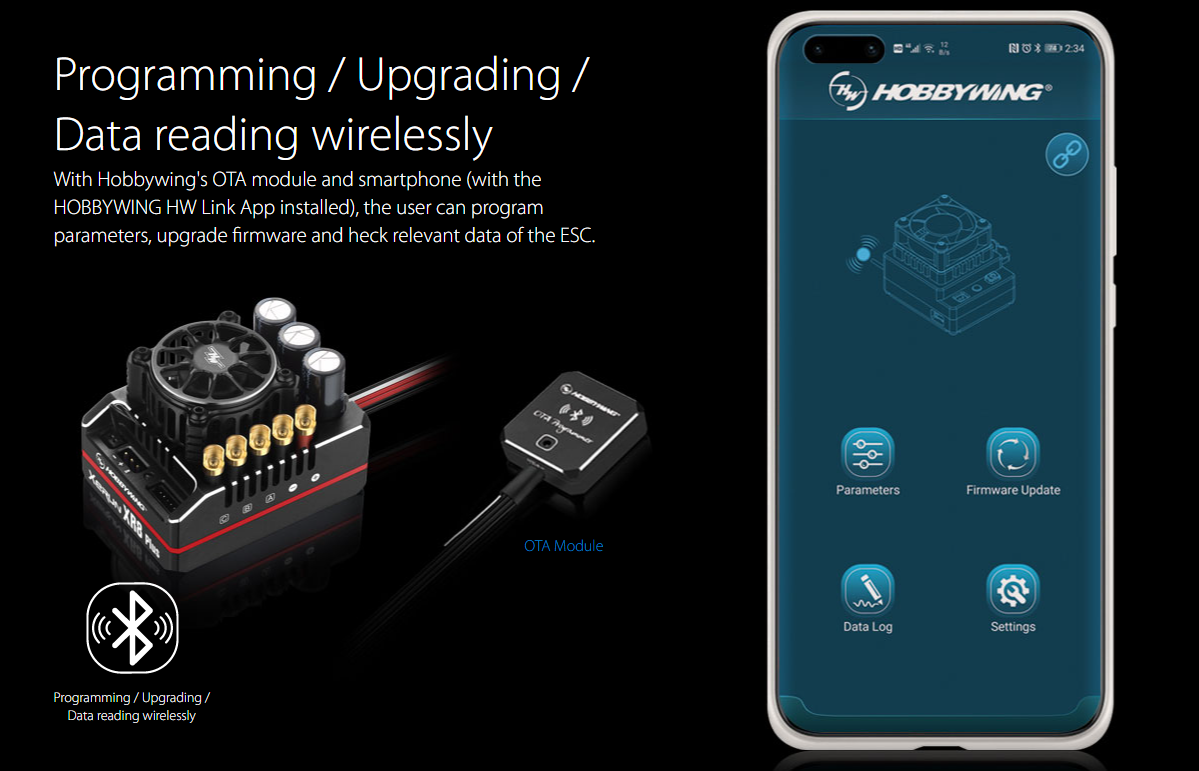

OTA Programmer Supported

Programming Port Independent programming port

Firmware Firmware Upgrade Supported

Size & Weight

Size 56.1mmx42.1mmx38.5mm

Weight 122g(w/wires)

Applications

SL BL Motors
SD BL Motors

Vehicles

1/8^th On-Road/Off-Road/Truggy Racing

KV Rating/T Count

4S LiPo： 4268/4274≤3000KV
6S LiPo：4274≤2400KV
